Panels

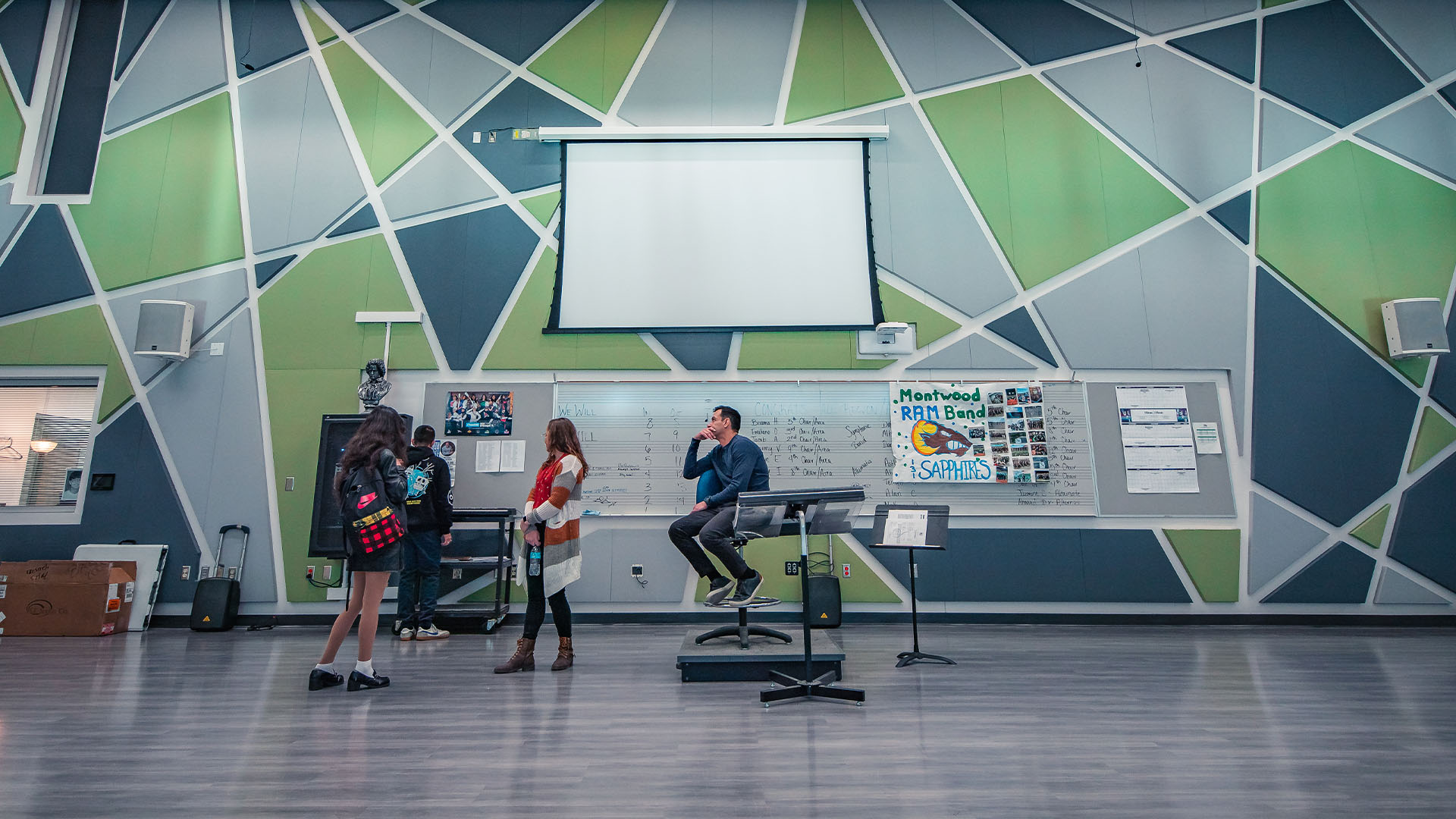

Conwed Panels are reliable, all-purpose acoustic solutions. Capable of multiple levels of durability, highly customizable finishes, and mounting options, this product is suitable for schools, auditoriums, theaters, offices, and libraries: anywhere noise control is needed.
Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
Fiberglass core (53% recycled content)
NAF & TK/AC cores available
Fabric-wrapped products are known as the Respond Series
Fabric | A
Fabric | IR
Fabric | HI
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thickness
NRC
½”
¾”
1″
1 ½”
2″
3″
4″
0.50
0.70
0.80
0.95
1.05
1.10
1.10
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Kerf/
Square
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thicknesses
½” ¾” 1″ 1 ½” 2″ 3″ 4″
NRC
0.50 0.70 0.80 0.95 1.05 1.10 1.10
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Kerf/
Square
Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a molded fiberglass
layer hidden beneath the fabric, Fabric | IR products have
increased impact-resistance.
Thickness
NRC
⅝”
⅞”
1 ⅛”
1 ⅝”
2 ⅛”
3 ⅛”
4 ⅛”
0.70
0.80
0.90
1.00
1.05
—
—
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Kerf/
Square
Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a durable and tackable IR layer
hidden beneath the surface, Fabric | IR products can have
increased impact-resistance.
Thicknesses
⅝” ⅞” 1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛” 4 ⅛”
NRC
0.70 0.80 0.90 1.00 1.05 — —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Kerf/
Square

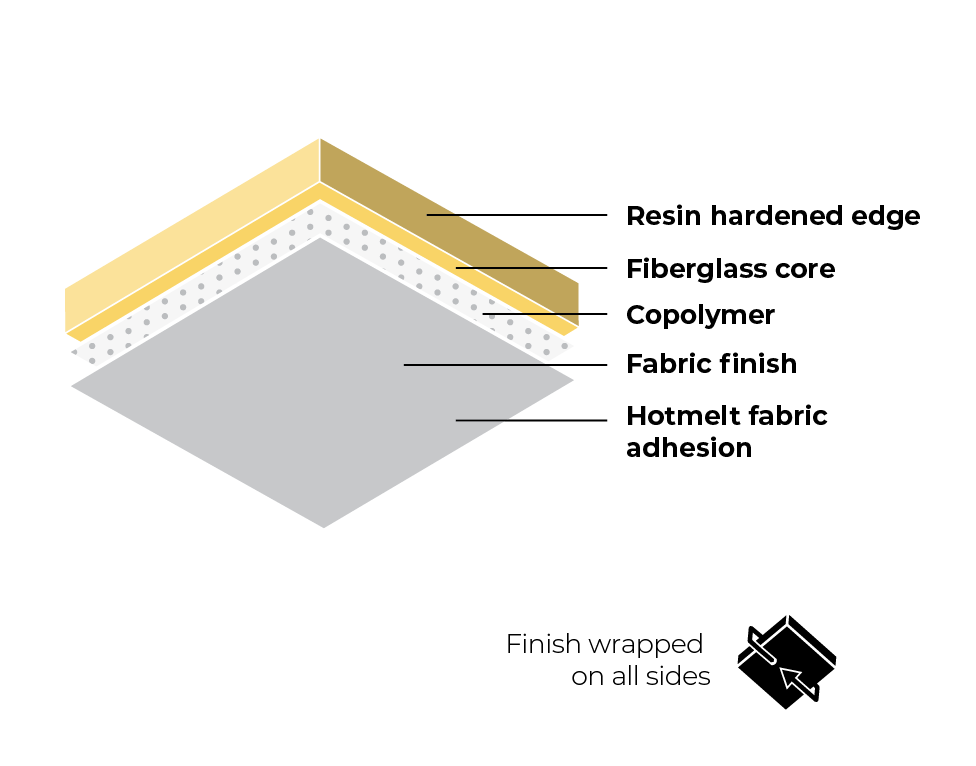

Fabric | HI
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. With the addition of a ¹⁄₁₆″ copolymer sheet hidden beneath the fabric, Fabric | HI products have high-impact resistance.
Product name history: Respond® HI was previously known as Rebound. This name change occurred on 03/16/2020.
Thickness
NRC
⁹⁄₁₆”
1 ¹⁄₁₆”
2 ¹⁄₁₆”
3 ¹⁄₁₆”
4 ¹⁄₁₆”
0.70
0.85
1.00
1.05
1.05
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Square
Kerf/
Square
Fabric | HI
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. With the addition of a ¹⁄₁₆″ copolymer sheet hidden beneath the fabric, Fabric | HI products have high-impact resistance.
Product name history: Respond® HI was previously known as Rebound. This name change occurred on 03/16/2020.
Thicknesses
⁹⁄₁₆” 1 ¹⁄₁₆” 2 ¹⁄₁₆” 3 ¹⁄₁₆” 4 ¹⁄₁₆”
NRC
0.70 0.85 1.00 1.05 1.05
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Square
Kerf/
Square
Painted products are known as New Dimensions.
Products left unpainted are known as Foundations.

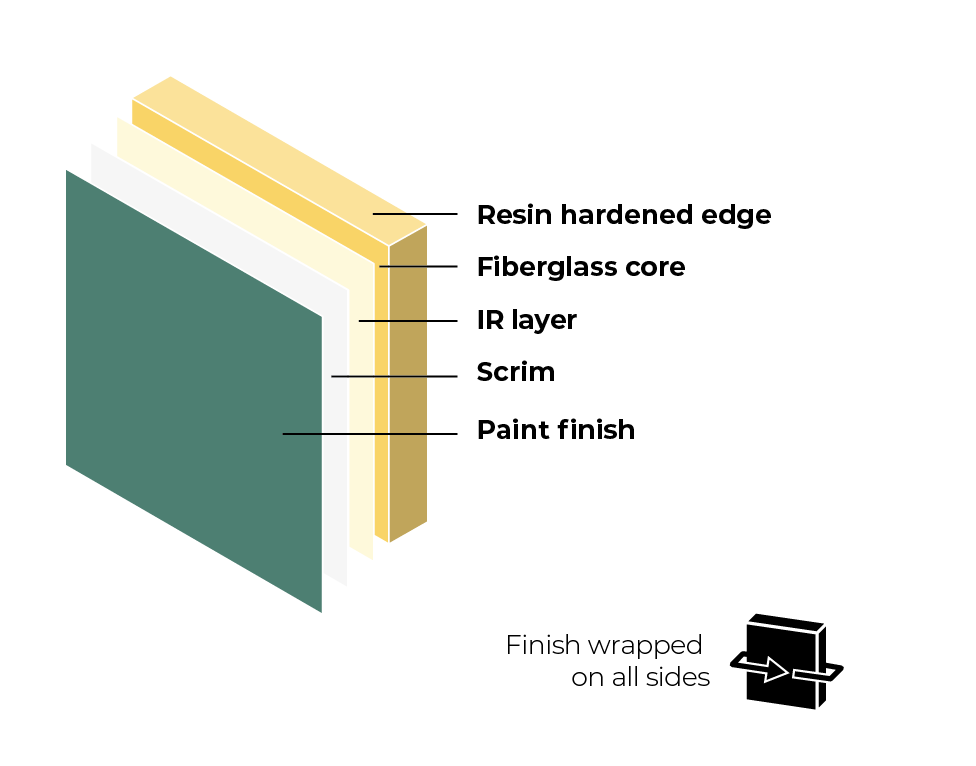

Paint | Wall Panel
Conwed’s painted products, known as New Dimensions,
are all uniformly sprayed using any custom color or color
match in the Sherwin Williams catalog. Products can be
left unpainted upon request to be finished in the field.
Unpainted products are known as Foundations.
Thicknesses 1 ⅛”
1 ⅝”
2 ⅛”
3 ⅛”
4 ⅛”
NRC
0.90
—
1.10
—
—
1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛” 4 ⅛”
Thicknesses 1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛” 4 ⅛”
NRC
0.90 — 1.10 — —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Kerf/Square
Printed products are known as Acoustic Art

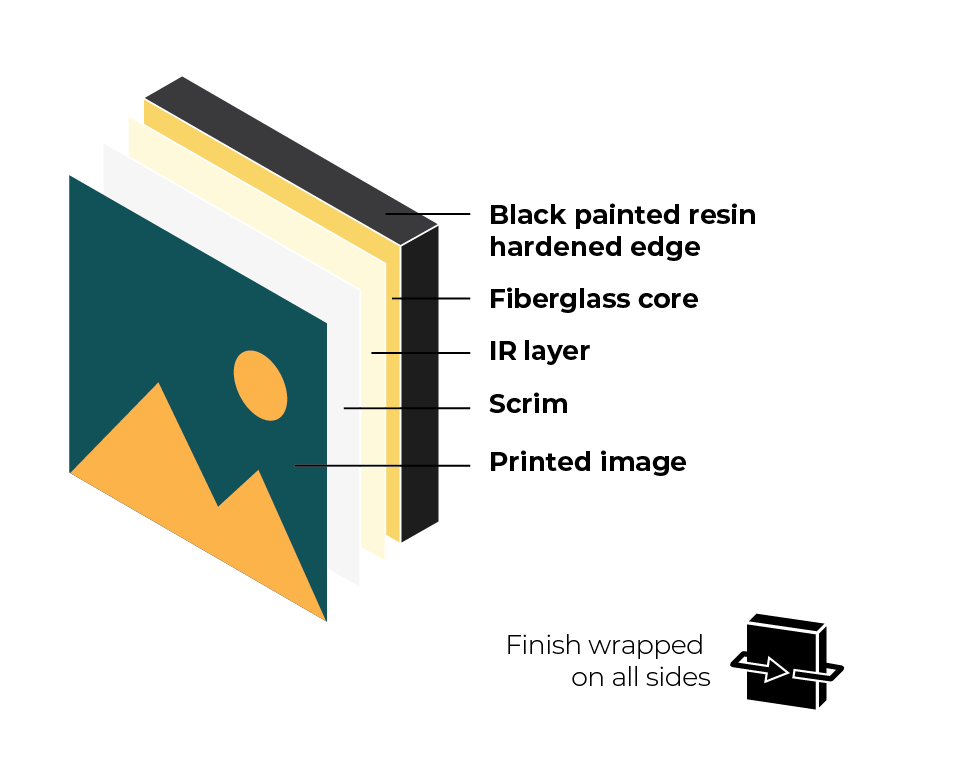

Print | Wall Panel
Any of Conwed’s main products can be custom-printed
for a truly unique look, making Acoustic Art. Print image
guidelines can be found at conwed.com/CEXP-printrequirements
Thicknesses 1 ⅛” 2 ⅛”
NRC
0.90 —
Sizes
Single panel sizes:*
Minimum: 12″x12″
Maximum: 4’x8′
*Larger images can be spread over multiple panels
Edge Details
Square with black
painted finish

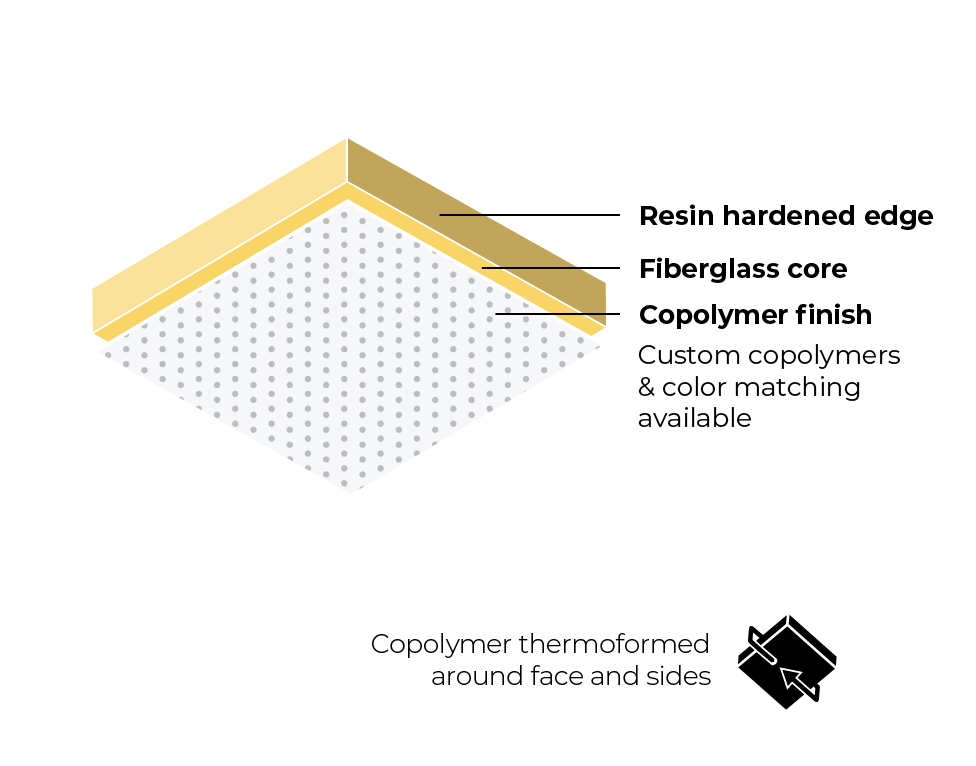

Copolymer products are also known as Metro Rebound

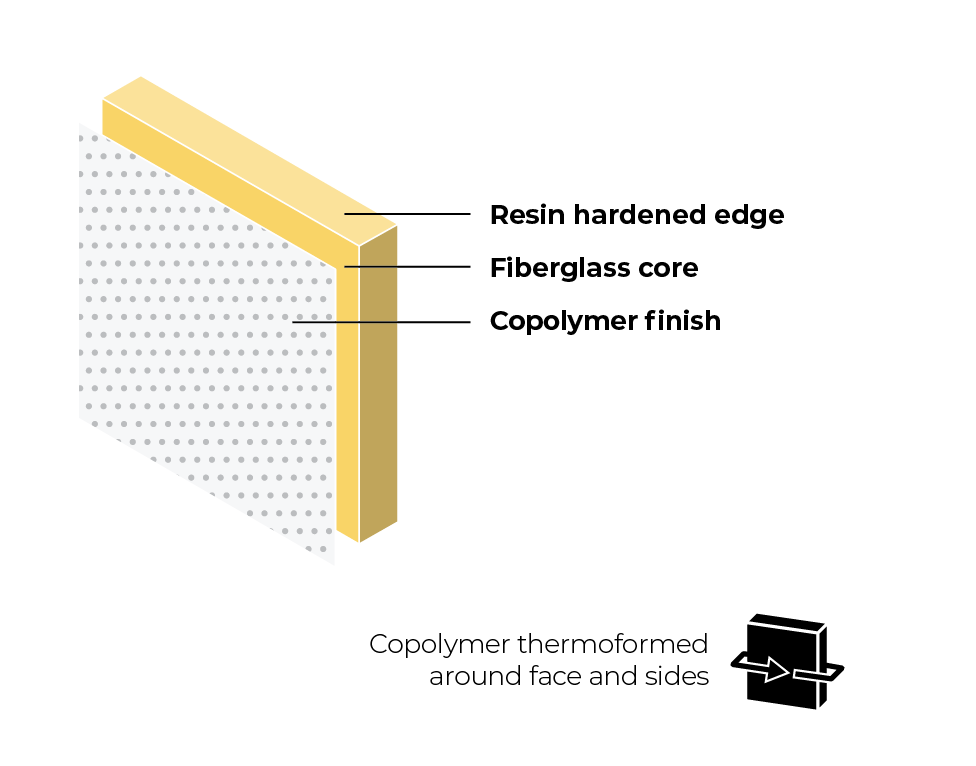

Copolymer | Wall Panel
Conwed’s copolymer-wrapped products, known as Metro
Rebound, utilize a ¹⁄₁₆″ sheet of Kydex copolymer for a
sleek and highly durable finish. Copoly comes in a variety
of swatches and custom colors can be ordered.
Thicknesses 1 ¹⁄₁₆” 1 ⁹⁄₁₆” 2 ¹⁄₁₆”
NRC
0.80 N/A 0.95
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Square
Mineral core products are known as TK/AC

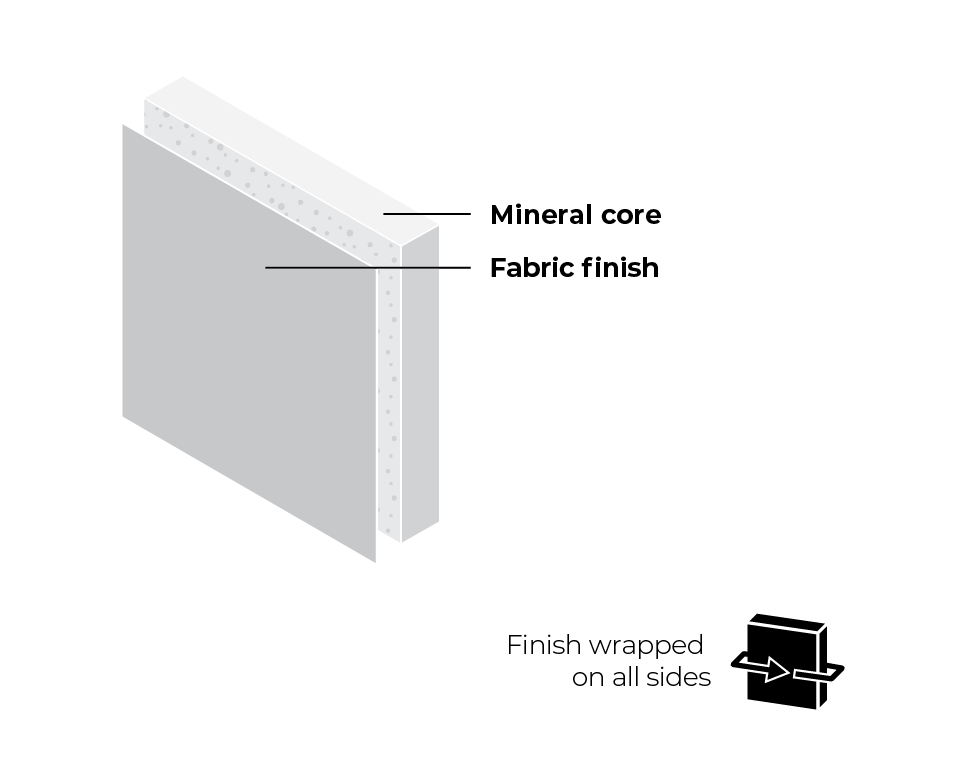

Mineral Core | Wall Panel
Mineral Core products are a tackable solution for environments that don’t need as much noise absorption per square foot as other Conwed solutions, but still retain the sharp looks and finish of Conwed’s fabric-wrapped products.
Thicknesses ½” ⅝”
NRC
— 0.35
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Kerf/Square
Fabric-wrapped products are known as the Respond Series

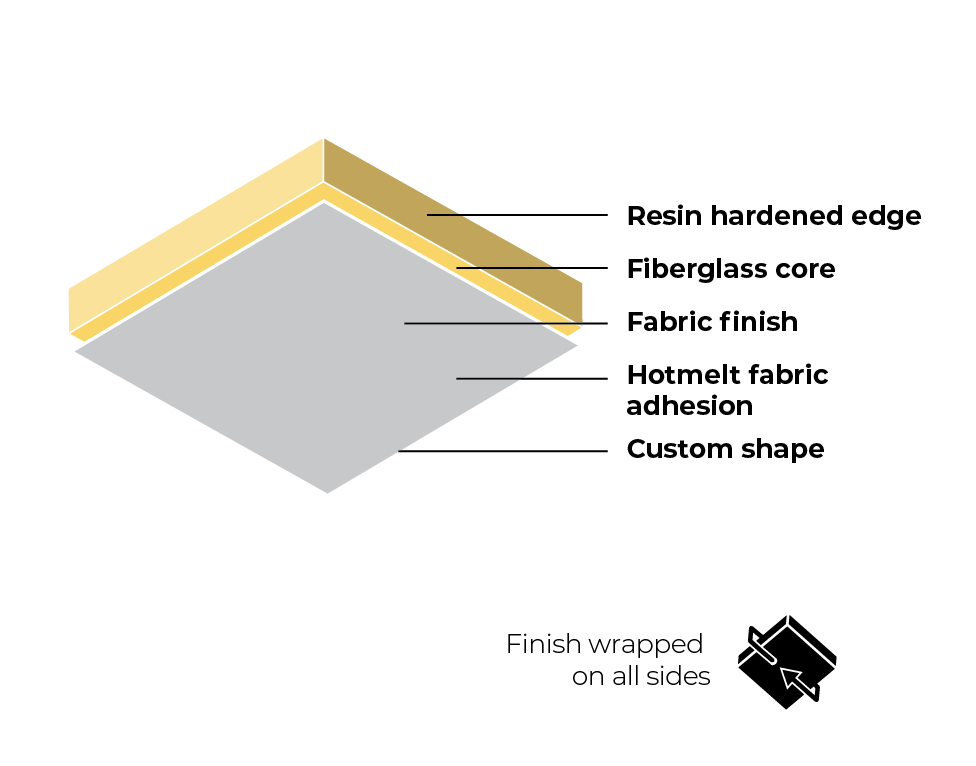

Fabric | A
Fabric | IR
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thicknesses
½”
¾”
1″
1 ½”
2″
3″
NRC
0.55
0.70
0.80
0.95
1.05
1.10
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thicknesses
½” ¾” 1″ 1 ½” 2″ 3″
NRC
0.55 0.70 0.80 0.95 1.05 1.10
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius

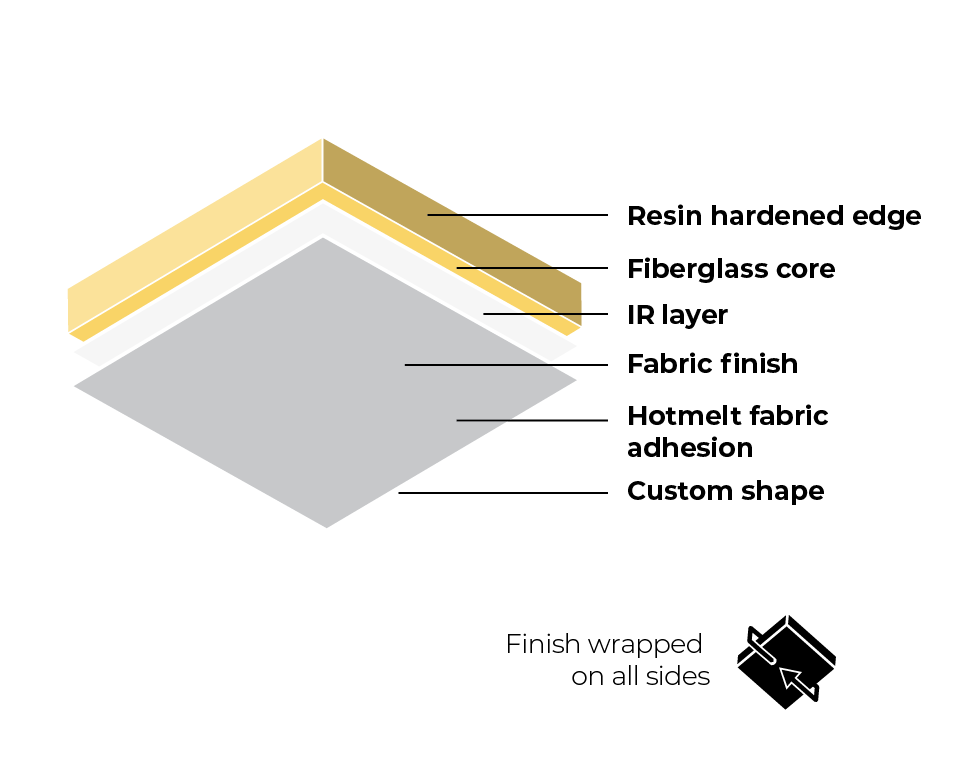

Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a molded fiberglass
layer hidden beneath the fabric, Fabric | IR products have
increased impact-resistance.
Thicknesses ⅝”
⅞”
1 ⅛”
1 ⅝”
2 ⅛”
3 ⅛”
NRC 0.70
0.80
0.90
1.00
1.05
—
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a durable IR layer
hidden beneath the surface, Fabric | IR products can have
increased impact-resistance.
Thicknesses ⅝” ⅞” 1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛”
NRC 0.70 0.80 0.90 1.00 1.15 —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Radius
Painted products are known as New Dimensions

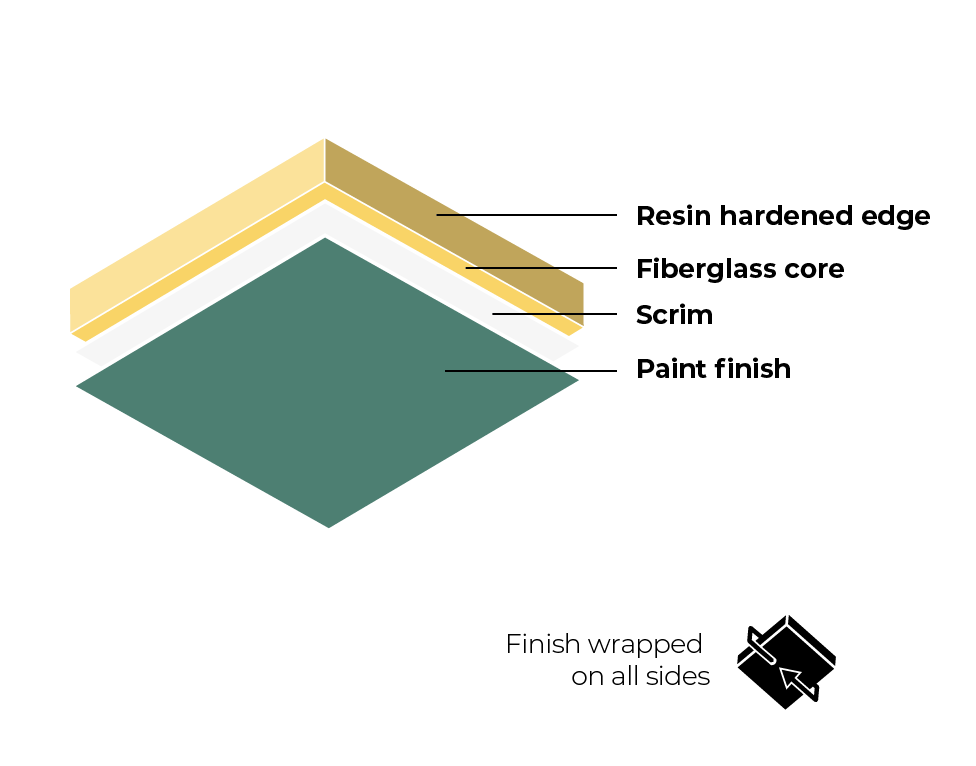

Ceiling Panel | Paint | A
Conwed’s painted products, known as New Dimensions,
are all uniformly sprayed using any custom color or color
match in the Sherwin Williams catalog. Products can be
left unpainted upon request to be finished in the field.
Unpainted products are known as Foundations.
Thicknesses 1″ 1 ½” 2″ 3″
NRC
0.80 0.95 1.05 1.10
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square

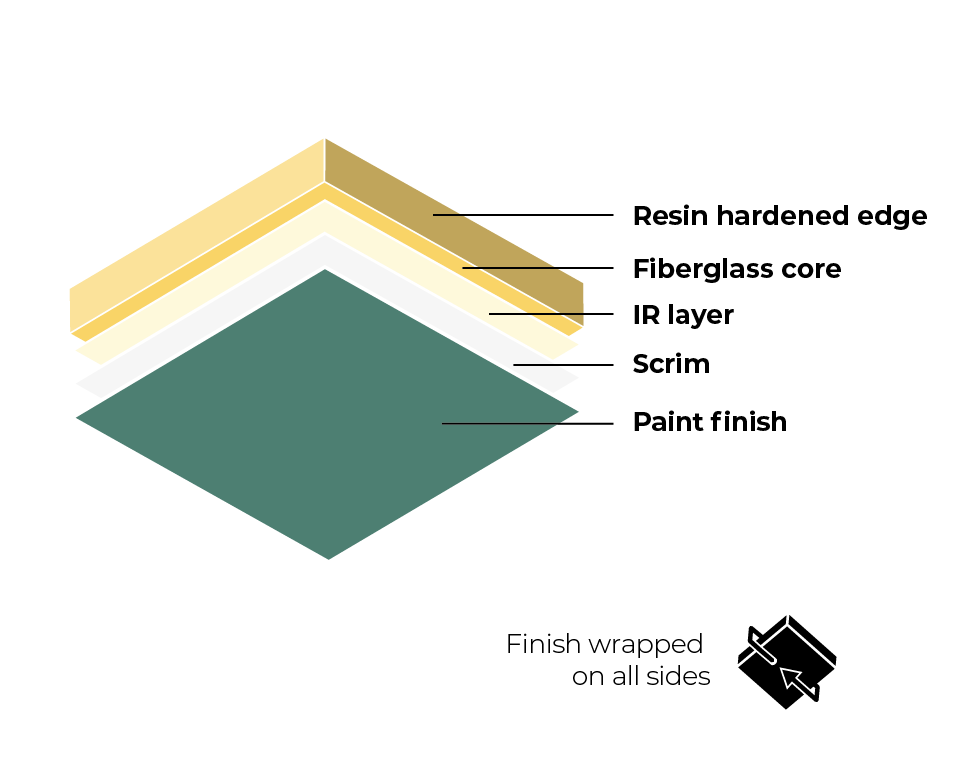

Ceiling Panel | Paint | IR
Conwed’s painted products, known as New Dimensions,
are all uniformly sprayed using any custom color or color
match in the Sherwin Williams catalog. Products can be
left unpainted upon request to be finished in the field.
Unpainted products are known as Foundations.
Thicknesses 1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛”
NRC
0.90 — 1.10 —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Bevel
Miter
Square
Printed products are known as Acoustic Art

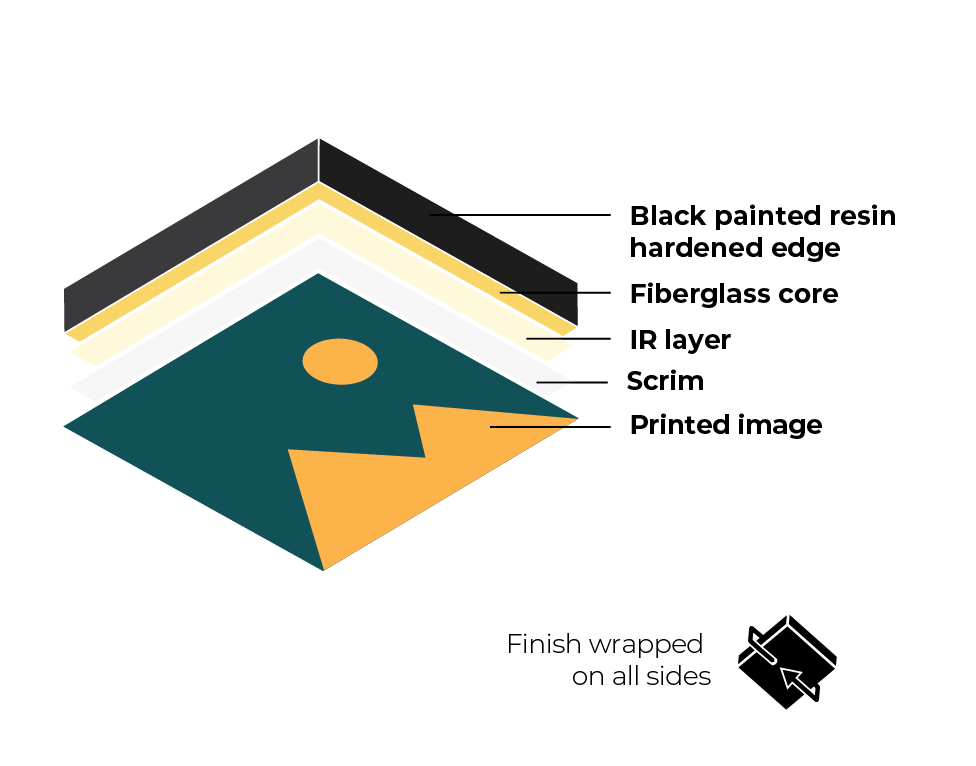

Print | Ceiling Panel
Any of Conwed’s main products can be custom-printed
for a truly unique look, making Acoustic Art. Print image
guidelines can be found at conwed.com/CEXP-printrequirements
Thicknesses 1 ⅛” 2 ⅛”
NRC
0.90 —
*These NRC values are from direct-attach tests of the same product. NRC values for this application are equal to or greater than these values.
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Square with black
painted finish
