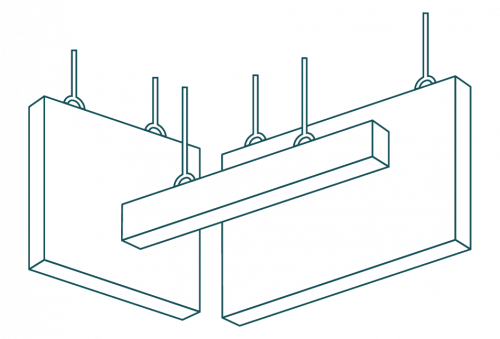

Baffles

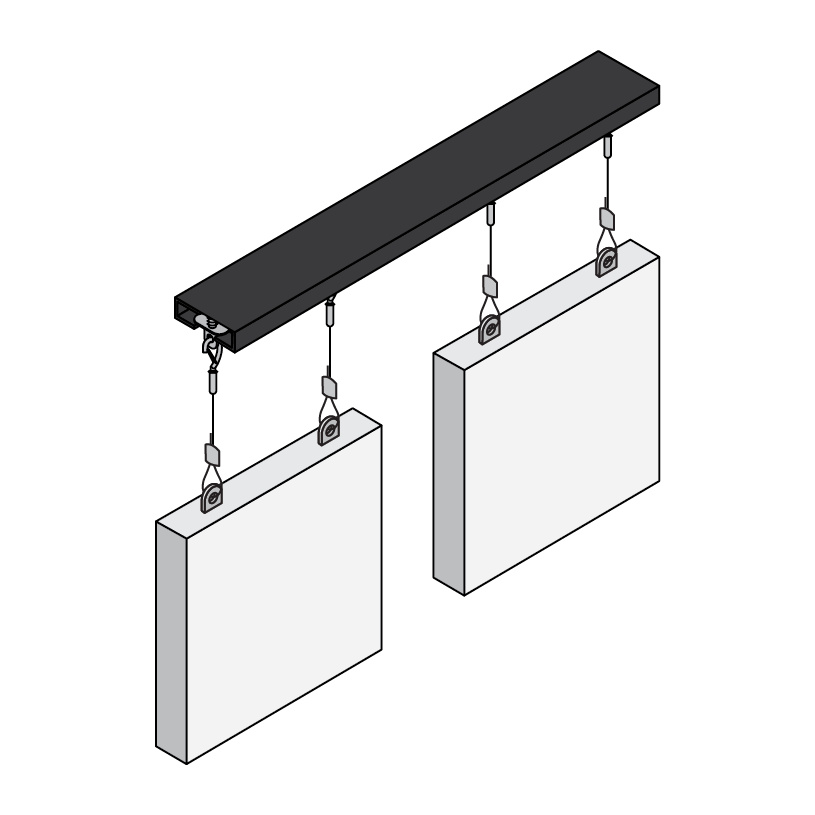

Conwed Baffles bring the performance you expect from a world-class acoustic solution to the growing trend of baffles. Combined with the Conwed Express Hanging System, any space can be perfectly fitted with highly customizable baffles.
Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
Fiberglass core (53% recycled content)
NAF & TK/AC cores available
Fabric-wrapped products are known as the Respond Series
Fabric | A
Fabric | IR
Fabric | A
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. Fabric | A products don’t rely on any
additional layers of material for our standard durability.
Thicknesses
2″
3″
4″
Metric Sabins
—
—
—
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Half Bevel
Square

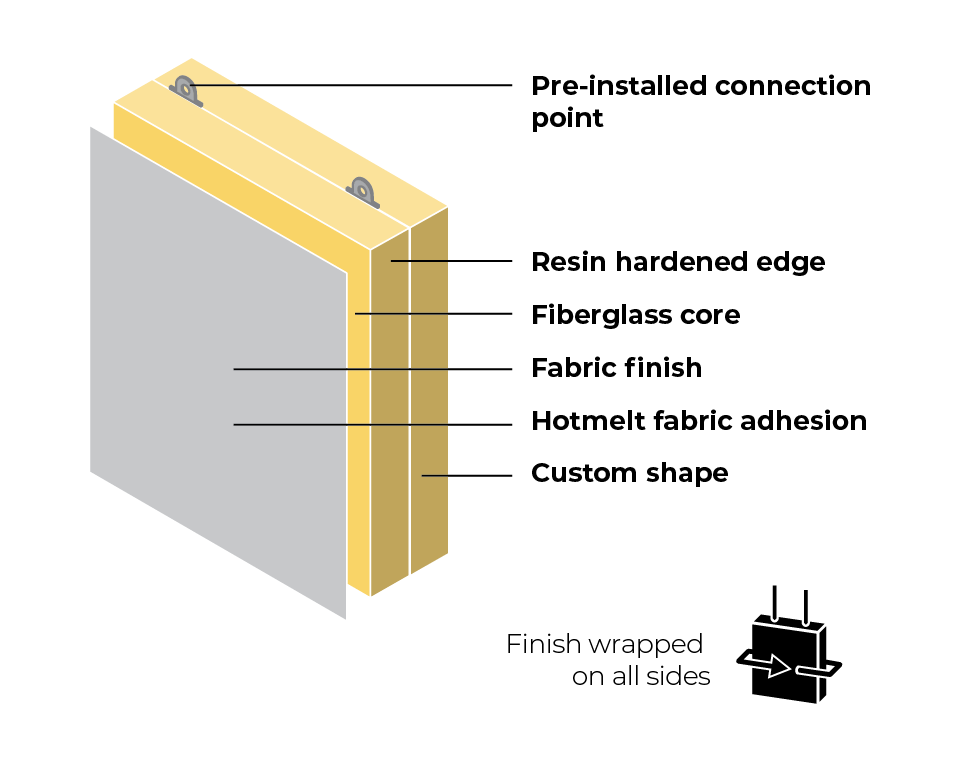

Fabric | A
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. Fabric | A products don’t rely on any
additional layers of material for our standard durability.
Thicknesses
2″ 3″ 4″
Metric Sabins
— — —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Half Bevel
Square

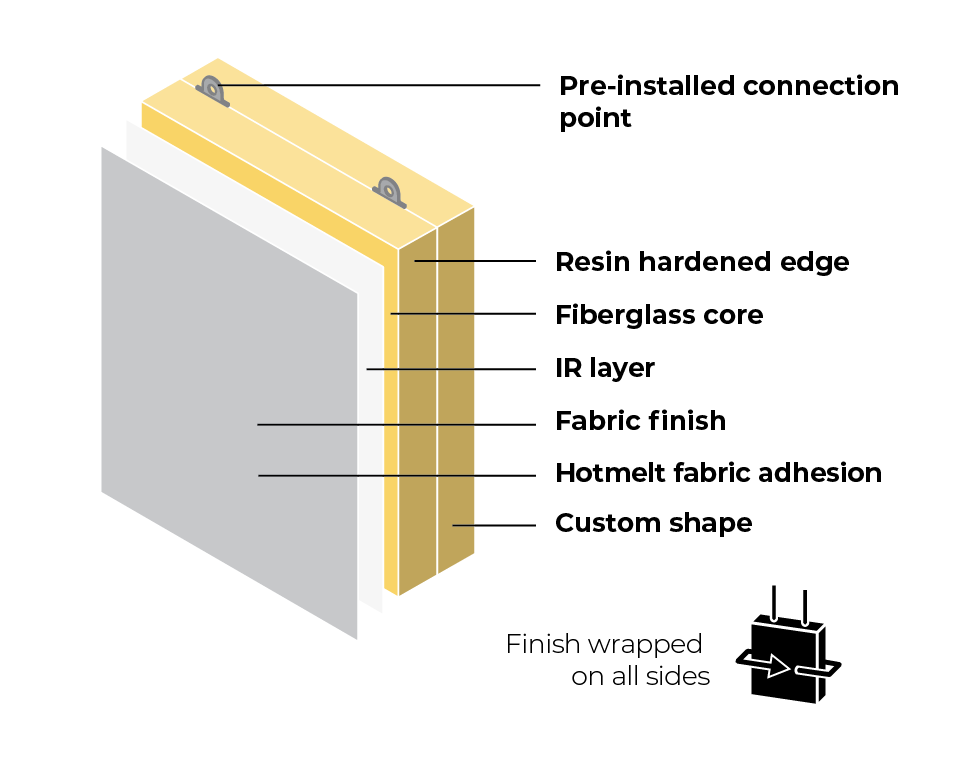

Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a molded fiberglass
layer hidden beneath the fabric, Fabric | IR products have
increased impact-resistance.
Thicknesses
2 ¼″
3 ¼″
4 ¼″
Metric Sabins
—
—
—
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Half Bevel
Square
Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a durable IR layer
hidden beneath the surface, Fabric | IR products can have
increased impact-resistance.
Thicknesses
2 ¼″ 3 ¼″ 4 ¼″
Metric Sabins
— — —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Half Bevel
Square
Painted products are known as New Dimensions
Products left unpainted are known as Foundations.

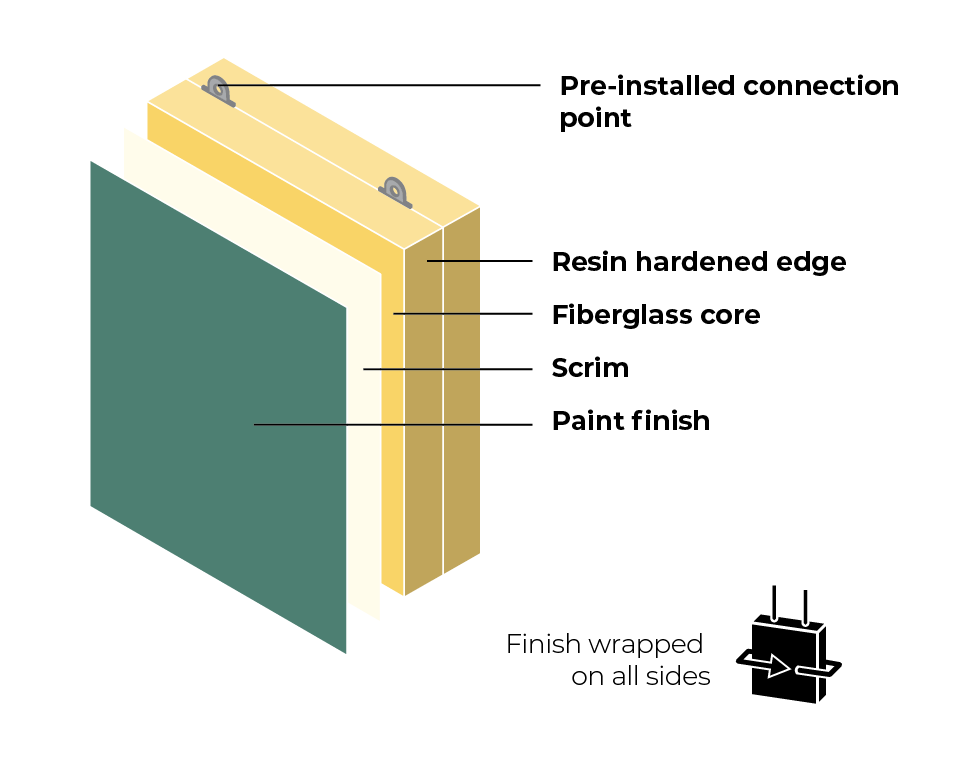

Paint | baffle
Conwed’s painted products, known as New Dimensions, are all uniformly sprayed using any custom color or color match in the Sherwin Williams catalog. Products can be left unpainted upon request to be finished in the field. Unpainted products are known as Foundations.
Thicknesses
1 ” 1 ½ ” 2 “
Metric Sabins
— — 1.54/sq. ft.
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Square
Printed products are known as Acoustic Art
Print | Baffle
Any of Conwed’s main products can be custom-printed for a truly unique look, making Acoustic Art. Print image guidelines can be found at conwed.com/CEXP-printrequirements
Thicknesses
2 ¼”
Metric Sabins
0.90
Sizes
Minimum: 12″ x 12″ Maximum: 4′ x 8′
Edge Details
Square with black painted finish
