Welcome to our new (and compact) Installation page. We’ve made dozens of new install guides, detail PDFs, and more in order to support YOU in the field. And yes, it is mobile-friendly.
Click a category to get started.
Weighing your options
There’s a lot of interchangeable pieces of wall hardware. This guide goes through each use-case, and what works with what.
Wall Panels & Diffusers

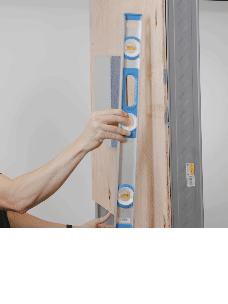

Rotofast EZ-Clip by Conwed
NEW, FACTORY-INSTALLED wall panel hardware with depth-adjustability to help with uneven walls, and can be moved on the backs of panels in seconds
without needing to wait on more resin.
Tools
- Drill
- Phillips bit
- Surface-dependent hardware
- 10mm allen wrench
- Level
- Laser level (recommended)
Rotofast Snap-on Anchors
Snap panels into place with strong holding power and precise placement. Great for panels with little to no clearance for hardware
engagement, or installing custom-shaped products.
Tools
- Drill
- Phillips bit
- 2" panhead screws
- Black ratchets
- Flat head screwdriver
- Level
- Laser level (recommended)
Z-bar | Z-bar
Can be strung on walls to create a continuous engagement point to hang multiple panels, keeping them straight. Can also
be attached to the backs of panels to create larger engagement points on a single product. Z-bars can engage with all other
Z-Components.
Tools
- Drill
- Surface-dependent hardware
- Laser level (recommended)
- Adhesive (optional)

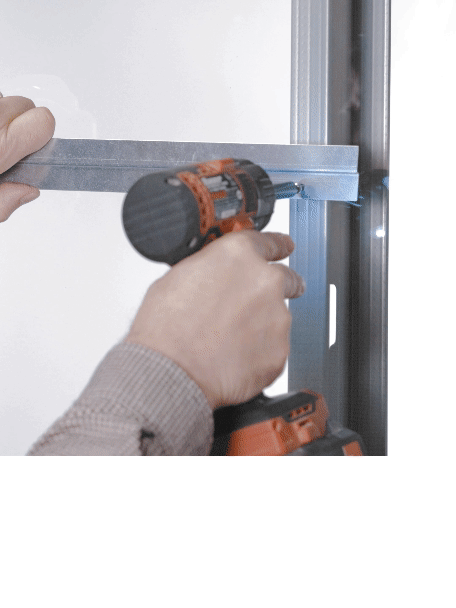

Z-clip | Z-bar
FACTORY-INSTALLED. Engaging with wall Z-Bars to hang panels. Works with most basic wall panel applications. Also available in aluminum for healthcare facilities.
Tools
- Drill
- Surface-dependent hardware
- Laser level (recommended)
- Adhesive (optional)

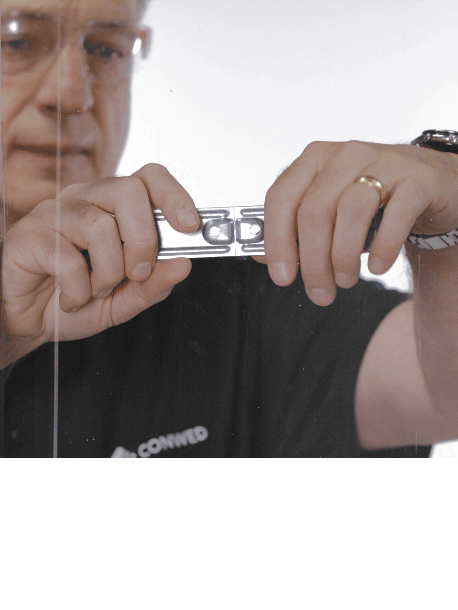

Z-clip | DW Bracket
Attaches to walls to provide a fixed hanging point that stop panels from moving or falling off the sides.
Tools
- Drill
- Surface-dependent hardware
- Laser level (recommended)
- Adhesive (optional)
Z-clip Plate | DW Bracket
FACTORY-INSTALLED. Engaging with wall Z-Bars to hang mineral core products.
Tools
- Drill
- Surface-dependent hardware
- Laser level (recommended)

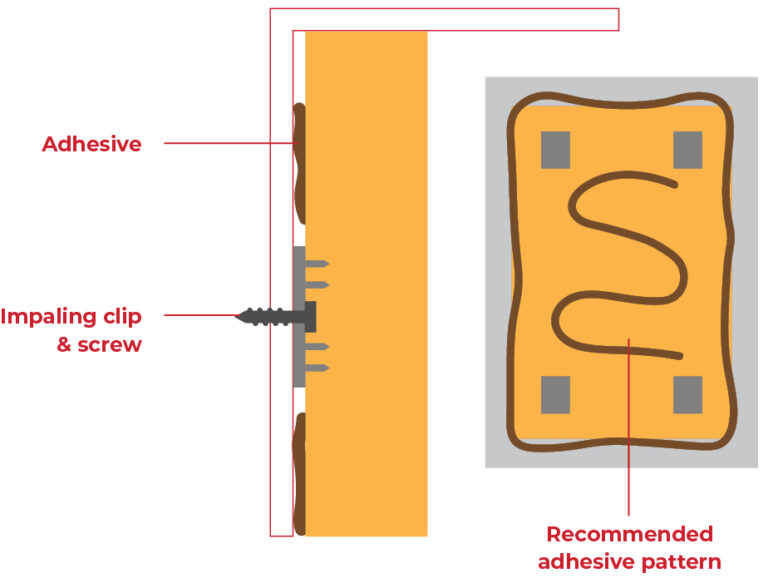

Impaling clips
Great for panels with little to no clearance for hardware engagement, quick installs with very few panels, or complex custom shapes.
This is a non-adjustable solution.
Tools
- Drill
- Phillips bit
- Construction adhesive
- Surface-dependent fastener
- Laser level (recommended)

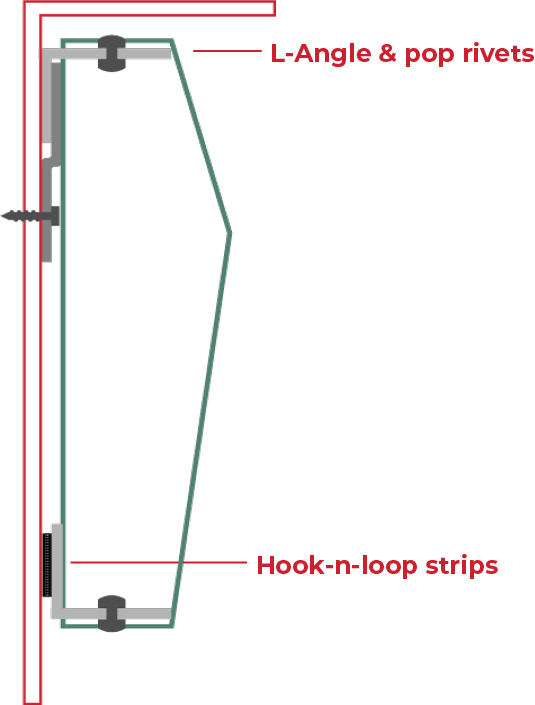

Diffuser L-Angles
Secure diffusers to surface by pop-riveting L Angles onto two opposite edges, one to hang, one to stick.
Tools
- Drill
- Phillips bit
- Pop rivets
- Level
- Laser level (recommended)
- Hook-n-loop strips
Ceiling Panels & Tiles

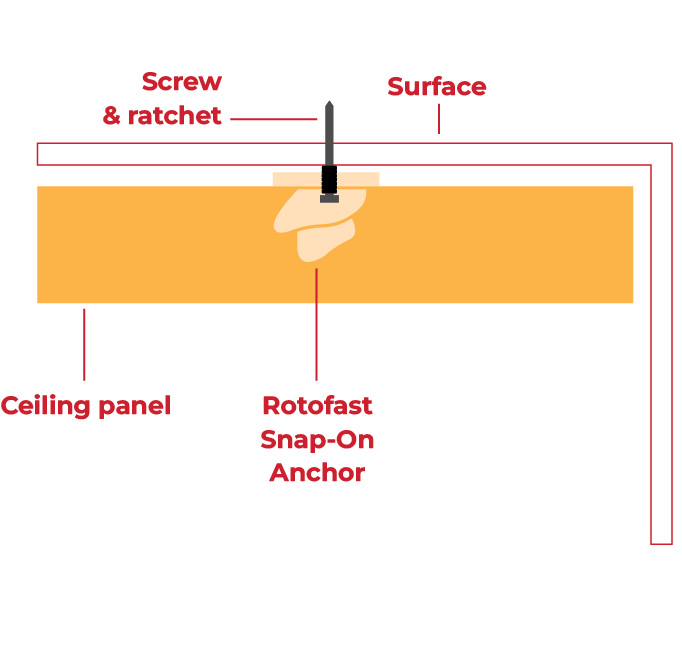

Rotofast Snap-on Anchors
Snap panels into place with strong holding power and precise placement. Great for panels with little to no clearance for hardware
engagement, or installing custom-shaped products.
Tools
- Drill
- Phillips bit
- 2" panhead screws
- Black ratchets
- Flat head screwdriver
- Level
- Laser level (recommended)
Z-bar | Z-bar
Z-bars mounted to the ceiling can engage with product-attached Z-bars. Great for lining up several panels in a row. Recommended: Add an L-angle or ‘dab’ of adhesive to prevent disengagement of Z-bars.
Tools
- Drill
- Surface-dependent hardware
- Laser level (recommended)
- Adhesive (optional)
Gridlock Tiles
A special tile edge that conceals the majority of the suspended grid behind it. Insert all interior tiles first, then proceed to the install guide for instructions on trimming panel edges to accommodate the smaller spaces on the perimeter of the grid.
Tools
- Drill
- Phillips bit
- Construction adhesive
- Surface-dependent fastener
- Laser level (recommended)

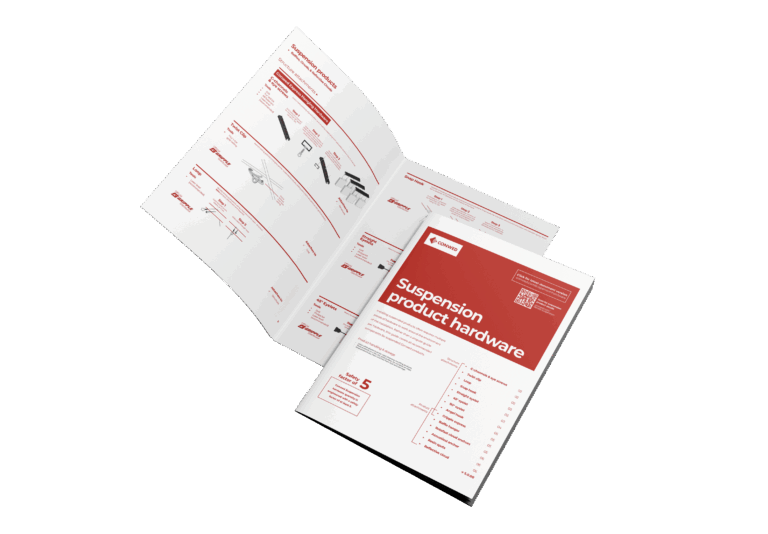

All things suspension,
in one place
No one piece of hardware can handle a suspension install, which is why we curated a hardware guide to compare recommended solutions for Conwed products. Once ready, refer to our general suspension install guide for proper procedures to ensure a safe installation.Â
Trim it, stuff it, tuck it.
For more, see our install guides.
Eurospan is a system of 3 components that works in virtually any space, creating seamless acoustical surfaces. Whether it’s discrete or jaw-dropping is up to you.
Want training? We train on-site, in our factory, and even over Zoom. Click to contact.
