Tiles
Conwed Tiles bring the best acoustic performance out of traditional drop-grid ceilings, whether they’re in the original spec, or a retrofit. Schools, offices, and more can all benefit.
Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
Fiberglass core (53% recycled content)
NAF & TK/AC cores available
Fabric-wrapped products are known as the Respond Series

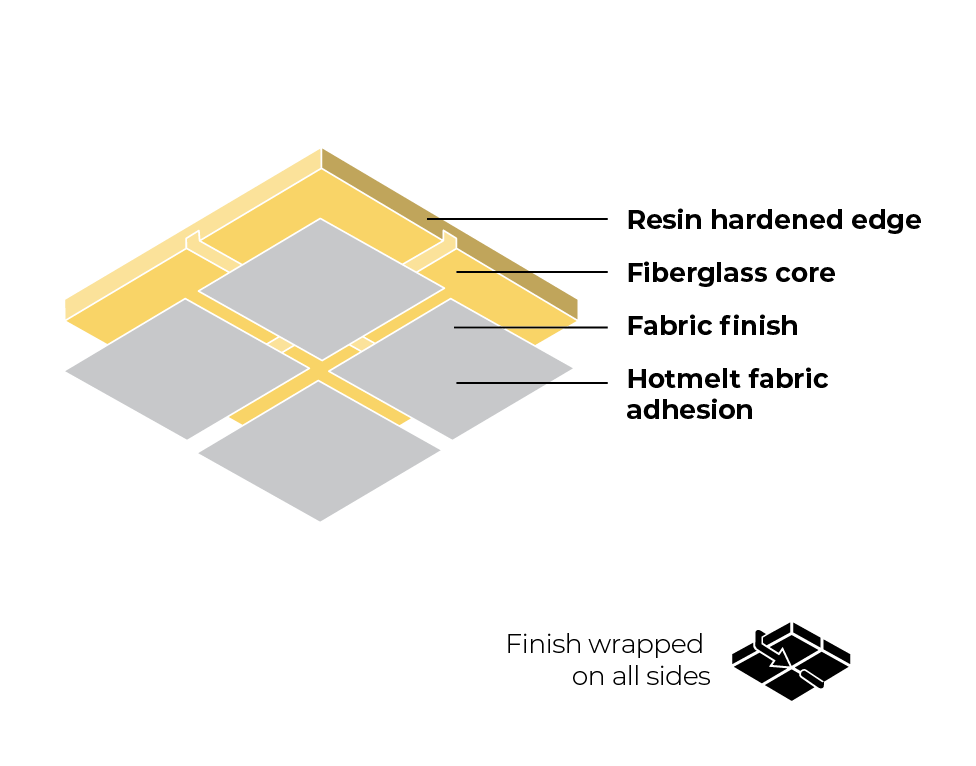

Fabric | A
Fabric | IR
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thicknesses
1″
1½″
2″
NRC
0.80
0.95
1.05
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
Edge Details
Lay-in: Square
Tegular: ⁹⁄₁₆″, ¹⁵⁄₁₆″
Gridlock: ¹⁵⁄₁₆″
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
Thicknesses
1″ 1½″ 2″
NRC
0.80 0.95 1.05
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
Edge Details
Lay-in: Square
Tegular: ⁹⁄₁₆″, ¹⁵⁄₁₆″
Gridlock: ¹⁵⁄₁₆″

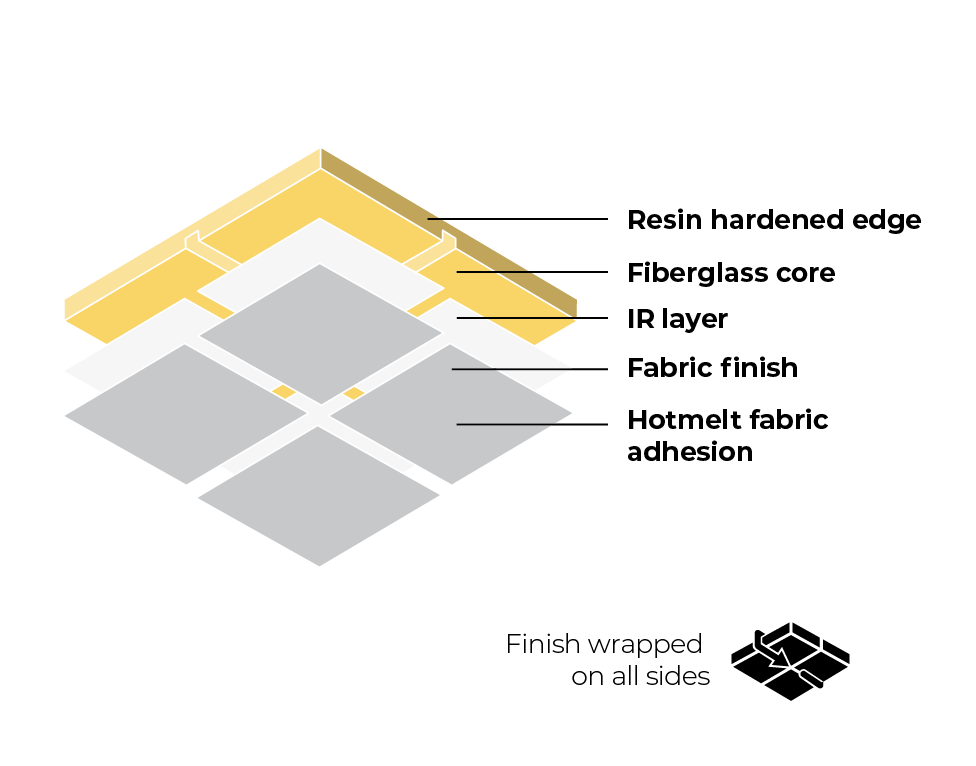

Respond IR | impact resistant
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. With the addition of a molded fiberglass layer hidden beneath the fabric, Fabric | IR products have increased impact-resistance.
Thicknesses
1 ⅛″
1 ⅝″
2 ⅛″
NRC 0.90
1.00
1.05
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
Edge Details
Lay-in: Square
Tegular: ⁹⁄₁₆″, ¹⁵⁄₁₆″
Gridlock: ¹⁵⁄₁₆″
Respond IR | impact resistant
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a durable IR layer
hidden beneath the fabric, Fabric | IR products can have
increased impact-resistance.
Thicknesses
1 ⅛″ 1 ⅝″ 2 ⅛″
NRC 0.90 1.00 1.05
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
Edge Details
Lay-in: Square
Tegular: ⁹⁄₁₆″, ¹⁵⁄₁₆″
Gridlock: ¹⁵⁄₁₆″
Painted products are known as New Dimensions.
Products left unpainted are known as Foundations.

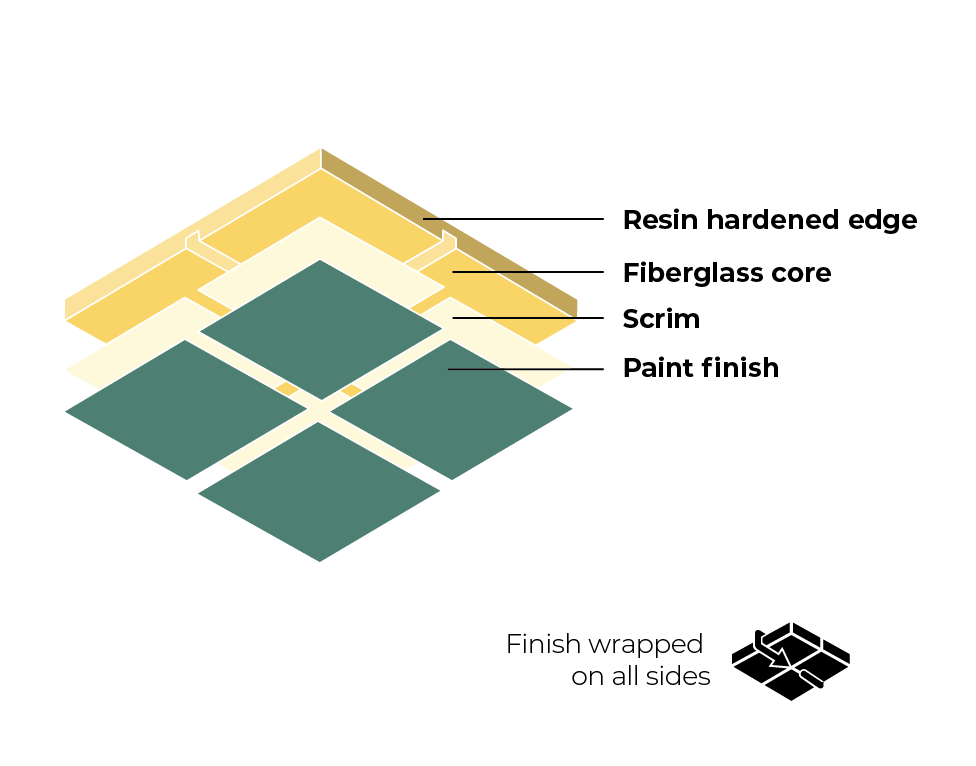

Paint | Tile
Conwed’s painted products, known as New Dimensions, are all uniformly sprayed using any custom color or color match in the Sherwin Williams catalog. Products can be left unpainted upon request to be finished in the field. Unpainted products are known as Foundations.
Thicknesses
1″ 1 ½″ 2″
NRC
0.80 0.95 1.05
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
Edge Details
Lay-in: Square

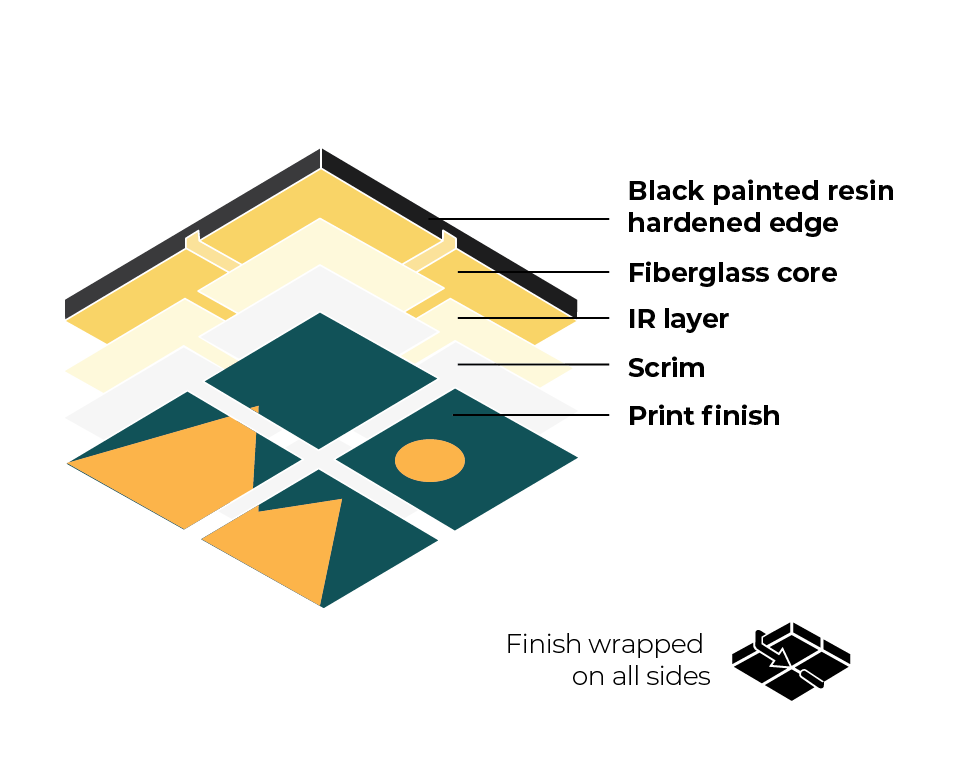

Printed products are known as Acoustic Art
Print | Tile
Any of Conwed’s main products can be custom-printed for a truly unique look, making Acoustic Art. Print image guidelines can be found at conwed.com/CEXP-printrequirements
Thicknesses
1 ⅛″ 2 ⅛″
NRC
0.90 —
Sizes
Standard max size is 2’x8′. See datasheet for specific details per product.
*Larger images can be spread over multiple panels
Edge Details
Lay-in: Square
