Clouds
Conwed Clouds bring depth to any space, suspending high-performance acoustic solutions in a variety of shapes, sizes, and finishes. Great for filling in large halls, auditoriums, and gyms, while still adding an interesting look to spaces like offices and lobbies.
Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
Fiberglass core (53% recycled content)
NAF & TK/AC cores available
- Fabric
- Paint
Fabric-wrapped products used to be called the Respond Series

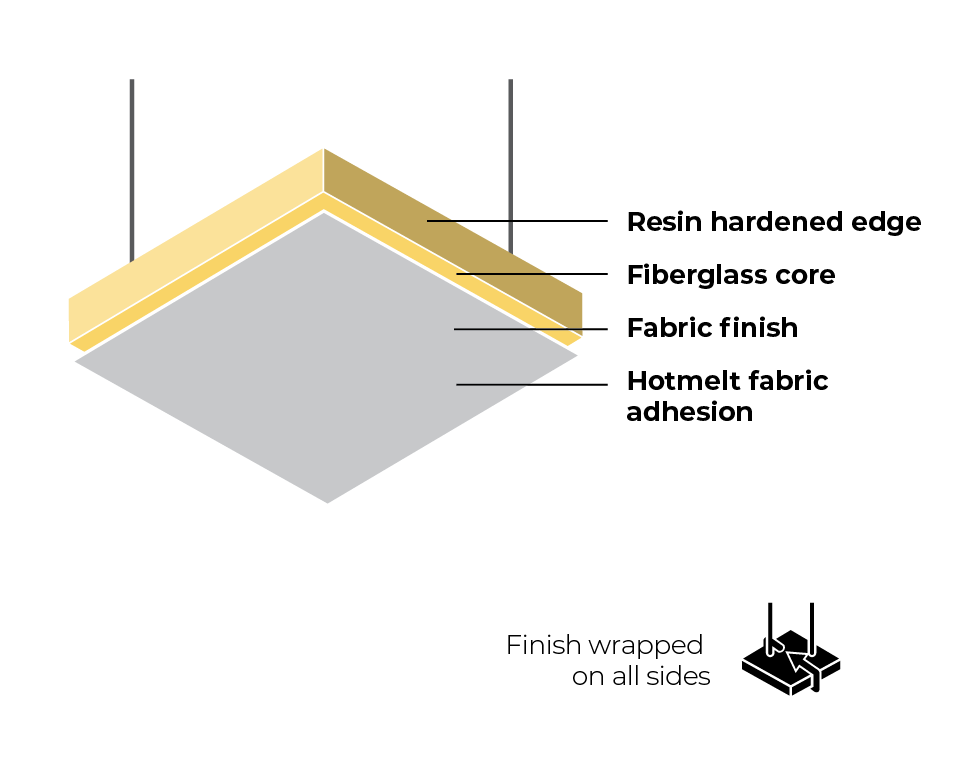

Fabric | A
Fabric | IR
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
½″ ¾″ 1″ 1 ½″ 2″ 3″
Standard max size is 5’x10′. See datasheet for specific details per product.
Bevel
Miter
Square
Radius
Fabric | A
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. Fabric | A products don’t rely on any additional layers of material for our standard durability.
½″ ¾″ 1″ 1 ½″ 2″ 3″
0.55 0.70 0.80 0.95 1.05 1.10
Standard max size is 5’x10′. See datasheet for specific details per product.

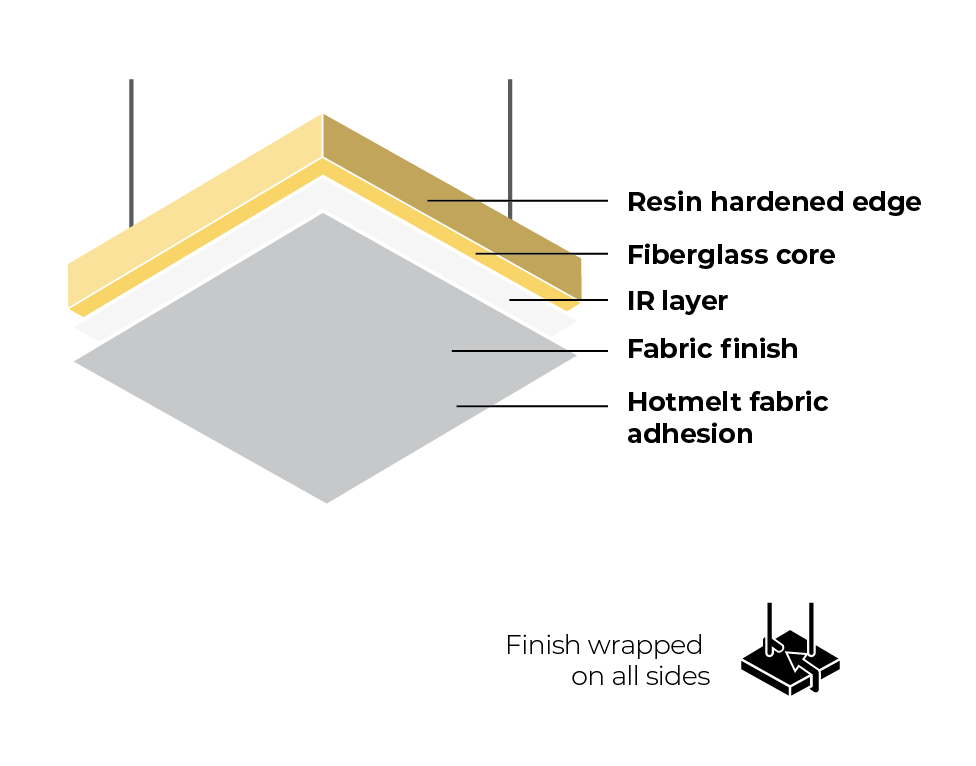

Fabric | IR
Conwed’s fabric-wrapped products, known as the Respond Series, are made with the leading textile manufacturers. With the addition of a molded fiberglass layer hidden beneath the fabric, Fabric | IR products have increased impact-resistance.
1 ⅛”
1 ⅝”
2 ⅛”
3 ⅛”
0.90
1.00
1.05
—
Standard max size is 5’x10′. See datasheet for specific details per product.
Bevel
Miter
Square
Radius
Fabric | IR
Conwed’s fabric-wrapped products, known as the
Respond Series, are made with the leading textile
manufacturers. With the addition of a durable IR layer
hidden beneath the surface, Fabric | IR products can have
increased impact-resistance.
1 ⅛” 1 ⅝” 2 ⅛” 3 ⅛”
0.90 1.00 1.05 —
Standard max size is 5’x10′. See datasheet for specific details per product.
Painted products used to be called New Dimensions

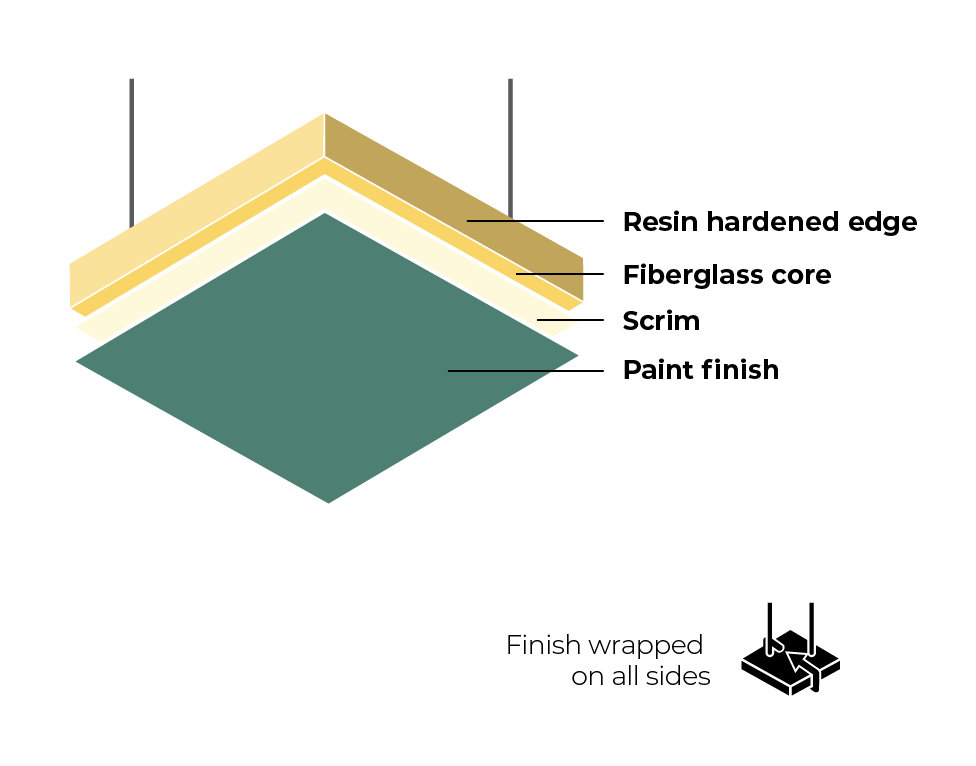

Paint | Cloud
Conwed’s painted products, known as New Dimensions,
are all uniformly sprayed using any custom color or color
match in the Sherwin Williams catalog. Products can be
left unpainted upon request to be finished in the field.
Unpainted products are known as Foundations.
Thicknesses
1 ½″ 2″
Metric Sabins
— —
Sizes
Standard max size is 5’x10′. See datasheet for specific details per product.
Edge Details
Printed products used to be called Acoustic Art

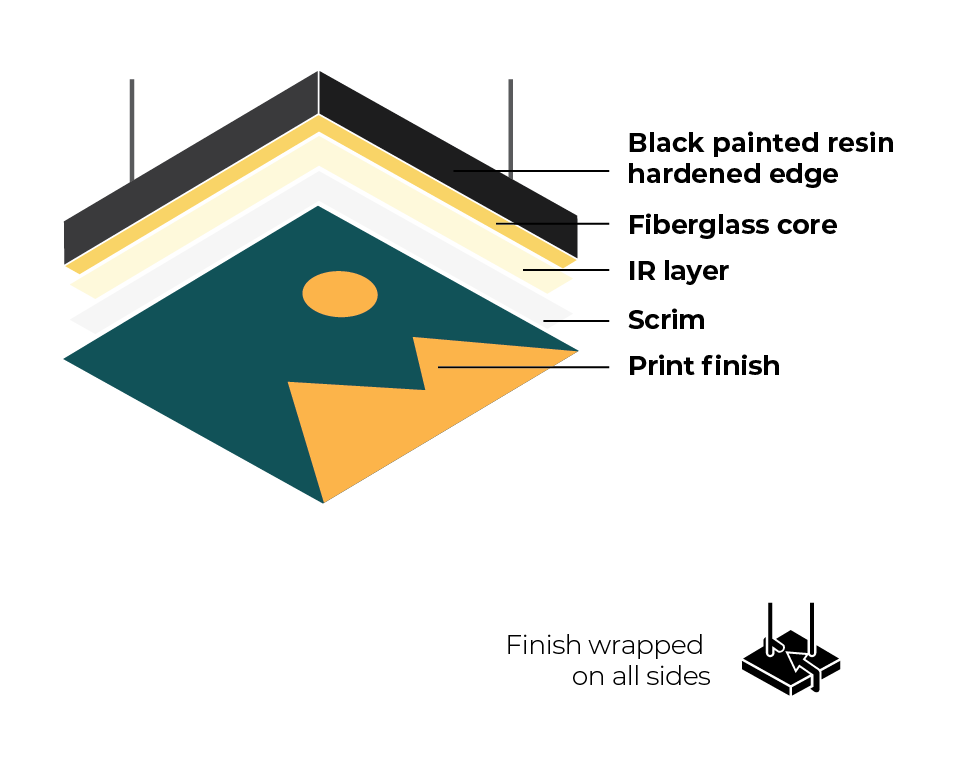

Print | Cloud
Any of Conwed’s main products can be custom-printed for a truly unique look, making Acoustic Art. Print image guidelines can be found at conwed.com/CEXP-printrequirements
Thicknesses
1 ⅛″ 2 ⅛″
NRC
0.90 N/A
Sizes
Single panel sizes:*
Minimum: 12″x12″
Maximum: 4’x8′
*Larger images can be spread over multiple panels
Edge Details
Square with
black painted finish
