Respond® HI

Respond® HI panels are designed for use in high-abuse areas requiring sound absorption. A vast variety of fabric finish options, from the leading fabric suppliers, offer you great design customization. A sheet of perforated copolymer under the fabric allows sound absorption while also giving you high impact resistance to withstand many forms of punishment. Use in gymnasiums, hotels, fitness centers, multi-purpose rooms: anywhere requiring a durable acoustic panel.

Product name history: Respond® HI was previously known as Rebound. This name change occurred on 03/16/2020.

NRC iconNRC product range: 0.70 - 1.05

Application types available:
  • Direct-Attach Ceiling Panels
  • Direct-Attach Wall Panels
Use for:
  • Gymnasiums
  • Hotels
  • Fitness Centers
  • Multi-purpose rooms

Core construction

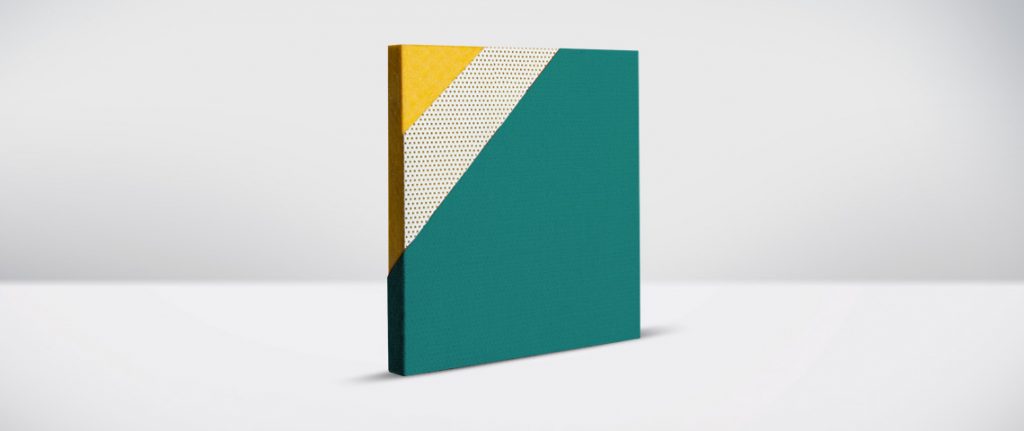

Dimensionally-stable 6-7 PCF fiberglass board, with a layer of 1⁄16" resilient perforated copolymer, covered with custom fabric that is completely adhered to the face of the panel and returned to the back for a full finished edge. All corners are fully tailored. Edges are protected with resin hardening.

Thickness options

Direct-Attach Ceiling Panels • 9⁄16" • 1 1⁄16" • 2 1⁄16" • 3 1⁄16"
Direct-Attach Wall Panels • 9⁄16" • 1 1⁄16" • 2 1⁄16" • 3 1⁄16" • 4 1⁄16"

Max sizes

Direct-Attach Ceiling Panels • Widths are up to 48" and lengths to 116"
Direct-Attach Wall Panels• Widths are up to 48" and lengths to 116"

Finishes

We partner with the top fabric suppliers in the industry so that we can give you the best options for finishing your designs. Click below to view our fabric finish brochures.

Application details

  • Direct-Attach Ceiling
  • Direct-Attach Wall
Acoustic performance
NRCNRC 9⁄16" = 0.70, 1 1⁄16" = 0.85, 2 1⁄16" = 1.00, 3 1⁄16" = 1.05
Product features
edgeEdge details

All edges are resin hardened, unless otherwise specified.
Available choices include:

square
Square
kerf
Kerf/Square

mountingMounting

Standard mountings:
• Z-Bar to Z-Bar
• Resin spots

Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImpact resistant:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄16", 2 1⁄16", and 3 1⁄16"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.
Acoustic performance
NRCNRC 9⁄16" = 0.70, 1 1⁄16" = 0.85, 2 1⁄16" = 1.00, 3 1⁄16" = 1.05, 4 1⁄16" = 1.05
Product features
edgeEdge details

All edges are resin hardened, unless otherwise specified.
Available choices include:

square
Square
kerf
Kerf/Square

mountingMounting

Standard mountings:
• Z-Clips to Z-Bar
• Concealed splines
• Impaling clips / perimeter adhesive
• Z-Bar to Z-Bar
• Resin spots

Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImpact resistant:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄16", 2 1⁄16", 3 1⁄16", and 4 1⁄16"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.

Initiatives

Conwed is committed to driving sustainability wherever possible. By streamlining our processes and using recycled materials in our products, we strive to decrease our environmental impact. Our materials are certified by leading social responsibility groups and are helping us pave the way toward a more sustainable future.

For your LEED® projects, our products can help you qualify for different points depending on the product you choose. Contact us to learn more detailed information.

Are you ready to request a quote?
