New Dimensions
Wall & Ceiling
Our New Dimension panels and tiles give a 'drywall' look to common areas and provide acoustic relief so people can communicate more effectively.
What goes into
your acoustics
1
2
3
4
5

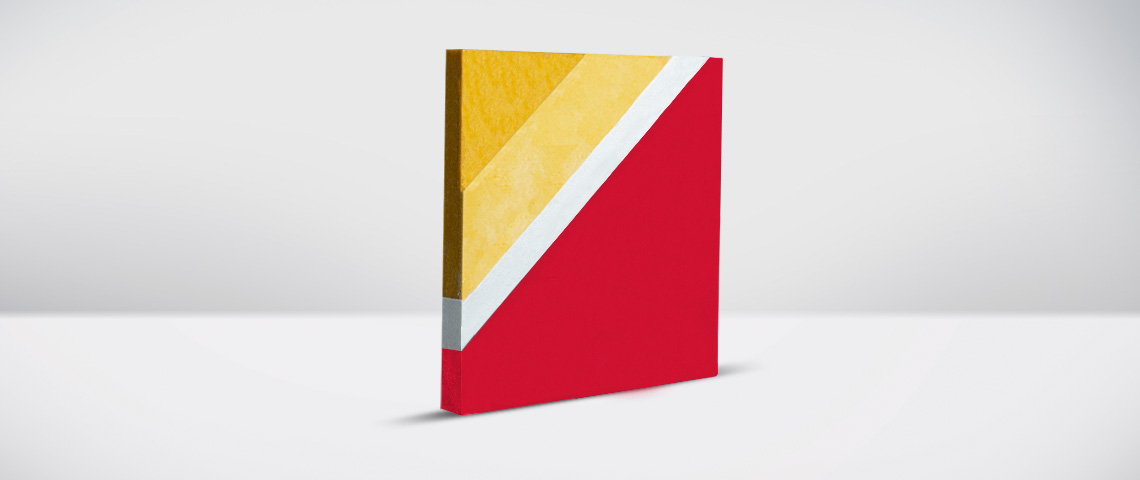

- Finish
- Acoustical core
- Resin hardened edge
- Molded fiberglass layer
- Foundations texture
- Features
- Testing
- Downloads
- Quick Spec
Drywall look
Look allows panels and tiles to better adapt to a variety of design aesthetics
All purpose
Designed to be used in any place where acoustical absorption is needed
Highly absorbent
Have high absorption ratings to provide better listening environments
AcousticsNRC Rating
Ceiling
1 1⁄8" = 0.85
Wall 1" = 0.90
2" = 1.05
3" = 1.25
4" = 1.30
Wall 1" = 0.90
2" = 1.05
3" = 1.25
4" = 1.30
Fire Rating
ASTM E84
Class 1/A Rating
Class 1/A Rating
Durability
Impact &
scratch resistant,
Washable
scratch resistant,
Washable
LEED® Certified
The board is certified by SCS to contain at least 57% recycled glass. And for your LEED® project, our acoustical panels can help you qualify for recycled content points under the Materials and Resources section.
Wall spec
SECTION 098410 – Sound absorptive wall panels
PART 1 - General
1.1 — SUMMARY
A. Section includes: Sound absorptive wall panels.
B. Related work: The following items are not included in this Section and are specified under the designated Sections:
1. Section 092100 – PLASTER AND GYPSUM BOARD ASSEMBLIES for plaster and gypsum board walls and ceilings
1.2 — SUBMITTALS
A. Product data:Submit manufacturer’s product data including certified laboratory test reports and other data required to show compliance with these specifications.
B. Samples: Submit 1 1-1/2 by 1 1-1/2 inch samples of representative panel with factory detailed edge, and representative samples of mounting devices
1.3 — QUALITY ASSURANCE
A. Pre-installation Conference: Conduct conference at Project site to comply with requirements in Division 01.
1.4 — DELIVERY, STORAGE, AND HANDELING
A. Project conditions: Protect system components from excessive moisture in shipment, storage, and handling. Deliver in unopened bundles and store in a dry place with adequate air circulation. Do not deliver material to building until wet conditions such as concrete, plaster, paint, and adhesives have been completed and cured to a condition of equilibrium.
1.5 — LIMITED WARRANTY
A. Limited warranty: Provide manufacturer’s standard limited 3-year warranty against manufacturing defects in material or workmanship.
PART 2 - Products
2.1 — SOUND ABSORPTIVE WALL PANELS:
A. Basis-of-Design: Conwed Foundations Acoustical Wall Panels.
1. Core fiberglass density: 6 - 7 pcf.
2. Core laminated with 1/8 inch, 16 - 20 pcf molded glass fiber.
3. Assembly accessories: Provide optional kerfs/splines for abutting square-edge panels.
4. Recycled content: For fiberglass, 52 percent pre-consumer and 5 percent post-consumer recycled content.
5. Core thickness: 1-1/8 inches.
6. Core thickness: 1-5/8 inches.
7. Core thickness: 2-1/8 inches.
8. Core thickness: 3-1/8 inches.
9. Core thickness: 4-1/8 inches.
10. Width: 24-48 inches.
11. Length: 24-120 inches.
12. Corners: Square.
13. Edge profile: Square.
14. Edge profile: Full bevel.
15. Edge profile: Half-bevel.
16. Edge treatment: Resin hardened.
17. Corners: Fully tailored.
18. Finish type and color: Soft Texture finish, white. Standard.
19. Finish type and color: Custom Paint Colors.
20. Mounting type: Lay-in.
21. Mounting type: Z-Bar to Z-Bar.
22. Flammability (ASTM E 84): Panel components shall have a Class “A” rating per ASTM E 84.
23. Resistivity to heat or cold: R-factor of 4.16 per inch of thickness.
24. Acoustical performance: Values below are for panels mounted in accordance with ASTM C 423 (Type E400 Mounting) and vary by panel thickness and finish.
a. Noise reduction coefficient (NRC) for 1-1/8 inch Thickness: 0.90.
b. Noise reduction coefficient (NRC) for 2-1/8 inch Thickness: 1.10.
PART 3 - Execution
3.1 — INSTALLATION:
A. Verify wet work such as plastering and concrete is complete and dry. Verify building is enclosed and under standard occupancy conditions (60 - 850F and not more than 70% relative humidity) prior to start of installation. Commencement of installation constitutes Installer’s acceptance of surfaces and conditions.
B. Install products in accordance with manufacturer’s written instructions and in proper relationship with adjacent construction, including the following:
1. For adhesive installation to substrate, provide temporary support to prevent panel slippage.
Note: Impaling clips are designed to help hold panels in place until adhesive dries.
C. Touch-up, repair or replace damaged units until satisfactory results are obtained.
CLICK HERE TO COPY SPEC
PART 1 - General
1.1 — SUMMARY
A. Section includes: Sound absorptive wall panels.
B. Related work: The following items are not included in this Section and are specified under the designated Sections:
1. Section 092100 – PLASTER AND GYPSUM BOARD ASSEMBLIES for plaster and gypsum board walls and ceilings
1.2 — SUBMITTALS
A. Product data:Submit manufacturer’s product data including certified laboratory test reports and other data required to show compliance with these specifications.
B. Samples: Submit 1 1-1/2 by 1 1-1/2 inch samples of representative panel with factory detailed edge, and representative samples of mounting devices
1.3 — QUALITY ASSURANCE
A. Pre-installation Conference: Conduct conference at Project site to comply with requirements in Division 01.
1.4 — DELIVERY, STORAGE, AND HANDELING
A. Project conditions: Protect system components from excessive moisture in shipment, storage, and handling. Deliver in unopened bundles and store in a dry place with adequate air circulation. Do not deliver material to building until wet conditions such as concrete, plaster, paint, and adhesives have been completed and cured to a condition of equilibrium.
1.5 — LIMITED WARRANTY
A. Limited warranty: Provide manufacturer’s standard limited 3-year warranty against manufacturing defects in material or workmanship.
PART 2 - Products
2.1 — SOUND ABSORPTIVE WALL PANELS:
A. Basis-of-Design: Conwed Foundations Acoustical Wall Panels.
1. Core fiberglass density: 6 - 7 pcf.
2. Core laminated with 1/8 inch, 16 - 20 pcf molded glass fiber.
3. Assembly accessories: Provide optional kerfs/splines for abutting square-edge panels.
4. Recycled content: For fiberglass, 52 percent pre-consumer and 5 percent post-consumer recycled content.
5. Core thickness: 1-1/8 inches.
6. Core thickness: 1-5/8 inches.
7. Core thickness: 2-1/8 inches.
8. Core thickness: 3-1/8 inches.
9. Core thickness: 4-1/8 inches.
10. Width: 24-48 inches.
11. Length: 24-120 inches.
12. Corners: Square.
13. Edge profile: Square.
14. Edge profile: Full bevel.
15. Edge profile: Half-bevel.
16. Edge treatment: Resin hardened.
17. Corners: Fully tailored.
18. Finish type and color: Soft Texture finish, white. Standard.
19. Finish type and color: Custom Paint Colors.
20. Mounting type: Lay-in.
21. Mounting type: Z-Bar to Z-Bar.
22. Flammability (ASTM E 84): Panel components shall have a Class “A” rating per ASTM E 84.
23. Resistivity to heat or cold: R-factor of 4.16 per inch of thickness.
24. Acoustical performance: Values below are for panels mounted in accordance with ASTM C 423 (Type E400 Mounting) and vary by panel thickness and finish.
a. Noise reduction coefficient (NRC) for 1-1/8 inch Thickness: 0.90.
b. Noise reduction coefficient (NRC) for 2-1/8 inch Thickness: 1.10.
PART 3 - Execution
3.1 — INSTALLATION:
A. Verify wet work such as plastering and concrete is complete and dry. Verify building is enclosed and under standard occupancy conditions (60 - 850F and not more than 70% relative humidity) prior to start of installation. Commencement of installation constitutes Installer’s acceptance of surfaces and conditions.
B. Install products in accordance with manufacturer’s written instructions and in proper relationship with adjacent construction, including the following:
1. For adhesive installation to substrate, provide temporary support to prevent panel slippage.
Note: Impaling clips are designed to help hold panels in place until adhesive dries.
C. Touch-up, repair or replace damaged units until satisfactory results are obtained.
Ceiling spec
SECTION 098410 – Sound absorptive ceilings
PART 1 - General
1.1 — SUMMARY
A. Section includes: Sound absorptive ceilings.
B. Related work: The following items are not included in this Section and are specified under the designated Sections:
1. Section 092100 – PLASTER AND GYPSUM BOARD ASSEMBLIES for plaster and gypsum board walls and ceilings
1.2 — SUBMITTALS
A. Product data: Submit manufacturer’s product data including certified laboratory test reports and other data required to show compliance with these specifications.
B. Samples: Submit 1 1-1/2 by 1 1-1/2 inch samples of representative panel with factory detailed edge, and representative samples of mounting devices
1.3 — QUALITY ASSURANCE
A. Pre-installation conference: Conduct conference at Project site to comply with requirements in Division 01.
1.4 — DELIVERY, STORAGE, AND HANDELING
A. Project conditions: Protect system components from excessive moisture in shipment, storage, and handling. Deliver in unopened bundles and store in a dry place with adequate air circulation. Do not deliver material to building until wet conditions such as concrete, plaster, paint, and adhesives have been completed and cured to a condition of equilibrium.
1.5 — LIMITED WARRANTY
A. Limited warranty: Provide manufacturer’s standard limited 3-year warranty against manufacturing defects in material or workmanship.
PART 2 - Products
2.1 — SOUND ABSORPTIVE PANELS:
A. Basis-of-Design: Conwed New Dimensions Acoustical Ceiling Panels.
1. Core fiberglass density: 6 - 7 pcf.
2. Core laminated with 1/8 inch, 16 - 20 pcf molded glass fiber.
3. Assembly accessories: Provide optional kerfs/splines for abutting square-edge panels.
4. Recycled content: For fiberglass, 52 percent pre-consumer and 5 percent post-consumer recycled content.
5. Core thickness: 1-1/8 inch.
6. Core thickness: 1-5/8 inch.
7. Core thickness: 2-1/8 inch.
8. Core thickness: 3-1/8 inch.
9. Core thickness: 4-1/8 inch.
10. Width: 24-48 inches.
11. Length: 24-120 inches.
12. Corners: Square.
13. Edge profile: Square.
14. Edge profile: Full bevel.
15. Edge profile: Half-bevel.
16. Edge treatment: Resin Hardened.
17. Corners: Fully tailored.
18. Finish type and color: Soft Texture finish, white.
19. Finish type and color: Custom Paint Color.
20. Mounting type: Lay-in
21. Mounting type: Z-Bar to Z-Bar
22. Flammability (ASTM E 84): Panel components shall have a Class “A” rating per ASTM E 84.
23. Resistivity to heat or cold: R-factor of 4.16 per inch of thickness.
23. Acoustical performance: Values below are for panels mounted in accordance with ASTM C 423 (Type E400 Mounting) and vary by panel finish.
a. Noise reduction coefficient (NRC) for 1-1/8 inch Thickness: 0.90.
b. Noise reduction coefficient (NRC) for 2-1/8 inch Thickness: 1.10.
PART 3 - Execution
3.1 — INSTALLATION:
A. Verify wet work such as plastering and concrete is complete and dry. Verify building is enclosed and under standard occupancy conditions (60 - 850F and not more than 70% relative humidity) prior to start of installation. Commencement of installation constitutes Installer’s acceptance of surfaces and conditions.
B. Install products in accordance with manufacturer’s written instructions and in proper relationship with adjacent construction, including the following:
1. For adhesive installation to substrate, provide temporary support to prevent panel slippage.
Note: Impaling clips are designed to help hold panels in place until adhesive dries.
C. Touch-up, repair or replace damaged units until satisfactory results are obtained.
CLICK HERE TO COPY SPEC
PART 1 - General
1.1 — SUMMARY
A. Section includes: Sound absorptive ceilings.
B. Related work: The following items are not included in this Section and are specified under the designated Sections:
1. Section 092100 – PLASTER AND GYPSUM BOARD ASSEMBLIES for plaster and gypsum board walls and ceilings
1.2 — SUBMITTALS
A. Product data: Submit manufacturer’s product data including certified laboratory test reports and other data required to show compliance with these specifications.
B. Samples: Submit 1 1-1/2 by 1 1-1/2 inch samples of representative panel with factory detailed edge, and representative samples of mounting devices
1.3 — QUALITY ASSURANCE
A. Pre-installation conference: Conduct conference at Project site to comply with requirements in Division 01.
1.4 — DELIVERY, STORAGE, AND HANDELING
A. Project conditions: Protect system components from excessive moisture in shipment, storage, and handling. Deliver in unopened bundles and store in a dry place with adequate air circulation. Do not deliver material to building until wet conditions such as concrete, plaster, paint, and adhesives have been completed and cured to a condition of equilibrium.
1.5 — LIMITED WARRANTY
A. Limited warranty: Provide manufacturer’s standard limited 3-year warranty against manufacturing defects in material or workmanship.
PART 2 - Products
2.1 — SOUND ABSORPTIVE PANELS:
A. Basis-of-Design: Conwed New Dimensions Acoustical Ceiling Panels.
1. Core fiberglass density: 6 - 7 pcf.
2. Core laminated with 1/8 inch, 16 - 20 pcf molded glass fiber.
3. Assembly accessories: Provide optional kerfs/splines for abutting square-edge panels.
4. Recycled content: For fiberglass, 52 percent pre-consumer and 5 percent post-consumer recycled content.
5. Core thickness: 1-1/8 inch.
6. Core thickness: 1-5/8 inch.
7. Core thickness: 2-1/8 inch.
8. Core thickness: 3-1/8 inch.
9. Core thickness: 4-1/8 inch.
10. Width: 24-48 inches.
11. Length: 24-120 inches.
12. Corners: Square.
13. Edge profile: Square.
14. Edge profile: Full bevel.
15. Edge profile: Half-bevel.
16. Edge treatment: Resin Hardened.
17. Corners: Fully tailored.
18. Finish type and color: Soft Texture finish, white.
19. Finish type and color: Custom Paint Color.
20. Mounting type: Lay-in
21. Mounting type: Z-Bar to Z-Bar
22. Flammability (ASTM E 84): Panel components shall have a Class “A” rating per ASTM E 84.
23. Resistivity to heat or cold: R-factor of 4.16 per inch of thickness.
23. Acoustical performance: Values below are for panels mounted in accordance with ASTM C 423 (Type E400 Mounting) and vary by panel finish.
a. Noise reduction coefficient (NRC) for 1-1/8 inch Thickness: 0.90.
b. Noise reduction coefficient (NRC) for 2-1/8 inch Thickness: 1.10.
PART 3 - Execution
3.1 — INSTALLATION:
A. Verify wet work such as plastering and concrete is complete and dry. Verify building is enclosed and under standard occupancy conditions (60 - 850F and not more than 70% relative humidity) prior to start of installation. Commencement of installation constitutes Installer’s acceptance of surfaces and conditions.
B. Install products in accordance with manufacturer’s written instructions and in proper relationship with adjacent construction, including the following:
1. For adhesive installation to substrate, provide temporary support to prevent panel slippage.
Note: Impaling clips are designed to help hold panels in place until adhesive dries.
C. Touch-up, repair or replace damaged units until satisfactory results are obtained.
