Arborcoustic®

Arborcoustic® panels are made from FSC® certified wood and cement which makes them both impact and scratch resistant, waterproof, and environmentally friendly. Excellent for use in auditoriums, offices, libraries, and more.

Use for:      • Auditoriums      • Offices      • Libraries

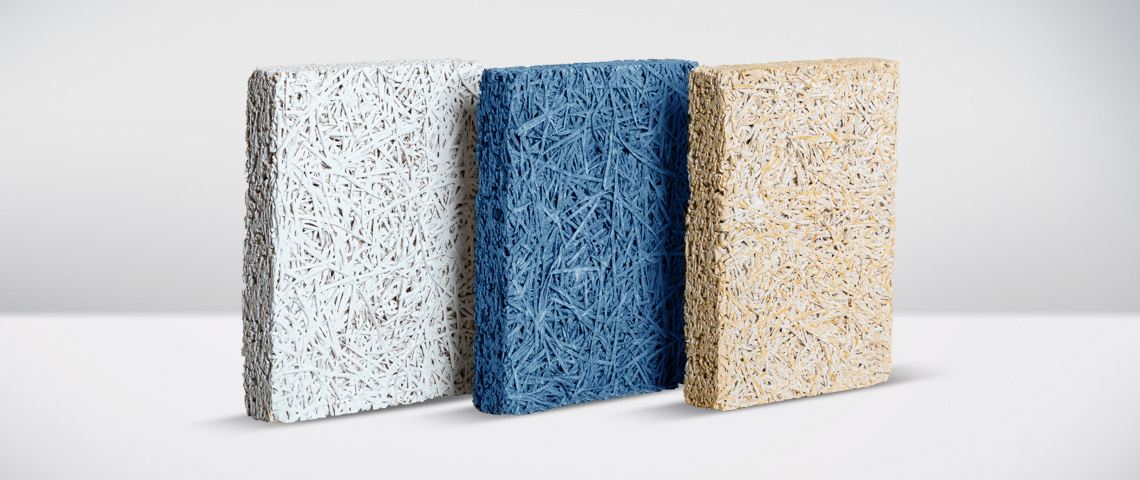

Core construction

Made of a composite core construction of wood wool, water, and cement.

BROCHURE

Application details

Arborcoustic_Tiles_White

Wood wool, water and cement mixture

DATA SHEET
SPECS
WARRANTY INFO

Acoustics

  • NRC (Noise Reduction Coefficient)

    1" (A-Mount)= 0.45
    1" (E400)= 0.40

Features

  • Thickness options
    • 1"
  • Max sizes
    Standard ceiling grid: 2' x 2', 2' x 4'
  • Edge details
    All edges are resin hardened, unless otherwise specified.
    Available choices include:
Lay-in: Square
Tegular_Edge-Detail
Tegular: 9/16”, 15/16”
  • Mounting
    Standard mountings:
    • Ceiling grid system
  • Shapes: —

Properties

  • Fire rating*: 1/A (ASTM E84)
    *Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
  • High Impact resistance: ✓
  • Scratch resistance: ✓
  • NAF: —
  • Washable: ✓
  • Warranty: 30 years from date of shipment received.
Arborcoustic_Ceiling_White

Wood wool, water and cement mixture

DATA SHEET
SPECS
WARRANTY INFO

Acoustics

  • NRC (Noise Reduction Coefficient)

    1" (A-Mount)= 0.45
    1" (E400)= 0.40

Features

  • Thickness options
    • 1"
  • Max sizes
    Standard max: 2' x 8'
  • Edge details
    All edges are resin hardened, unless otherwise specified.
    Available choices include:
Square
Half Bevel
Tegular_Edge-Detail
Tegular
  • Mounting
    Standard mountings:
    • Screws
  • Shapes: —

Properties

  • Fire rating*: 1/A (ASTM E84)
    *Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
  • High Impact resistance: ✓
  • Scratch resistance: ✓
  • NAF: —
  • Washable: ✓
  • Warranty: 30 years from date of shipment received.
Arborcoustic_Wall_White

Wood wool, water and cement mixture

DATA SHEET
SPECS
WARRANTY INFO

Acoustics

  • NRC (Noise Reduction Coefficient)

    1" (A-Mount)= 0.45
    1" (E400)= 0.40

Features

  • Thickness options
    • 1"
  • Max sizes
    Standard max: 2' x 8'
  • Edge details
    All edges are resin hardened, unless otherwise specified.
    Available choices include:
Square
Half Bevel
Tegular_Edge-Detail
Tegular
  • Mounting
    Standard mountings:
    • Screws
  • Shapes: —

Properties

  • Fire rating*: 1/A (ASTM E84)
    *Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.
  • High Impact resistance: ✓
  • Scratch resistance: ✓
  • NAF: —
  • Washable: ✓
  • Warranty: 30 years from date of shipment received.

Paint finish

Product is available in multiple paint choices including standard white, grey or custom special order colors.

Please note: The textured surface of the Arborcoustic® wood fiber greatly affects the finished appearance of selected colors. Approval of painted samples is recommended.

View a selection of swatches and additional information here or download the brochure below.

PAINT BROCHURE

Initiatives

Conwed is committed to driving sustainability wherever possible. By streamlining our processes and using recycled materials in our products, we strive to decrease our environmental impact. Our materials are certified by leading social responsibility groups and are helping us pave the way toward a more sustainable future.

LEED.svg

For your LEED® projects, our products can help you qualify for different points depending on the product you choose. Contact us to learn more detailed information.
