Acoustic Art

Acoustic Art panels give you the freedom to merge your creative ideas with the sound-absorbing qualities of our world-class acoustic solutions. Use your company's logo, your school’s mascot, or a photo from your recent family vacation. The only limit is your imagination. Connect with us today to see how Acoustic Art by Conwed can add design flair to your space.

NRC iconNRC: 0.90

Application types available:
  • Baffles
  • Ceiling Tiles
  • Clouds
  • Direct-Attach Ceiling Panels
  • Direct-Attach Wall Panels
Use for:
  • Lobbies
  • Restauraunts
  • Studios
  • Museums

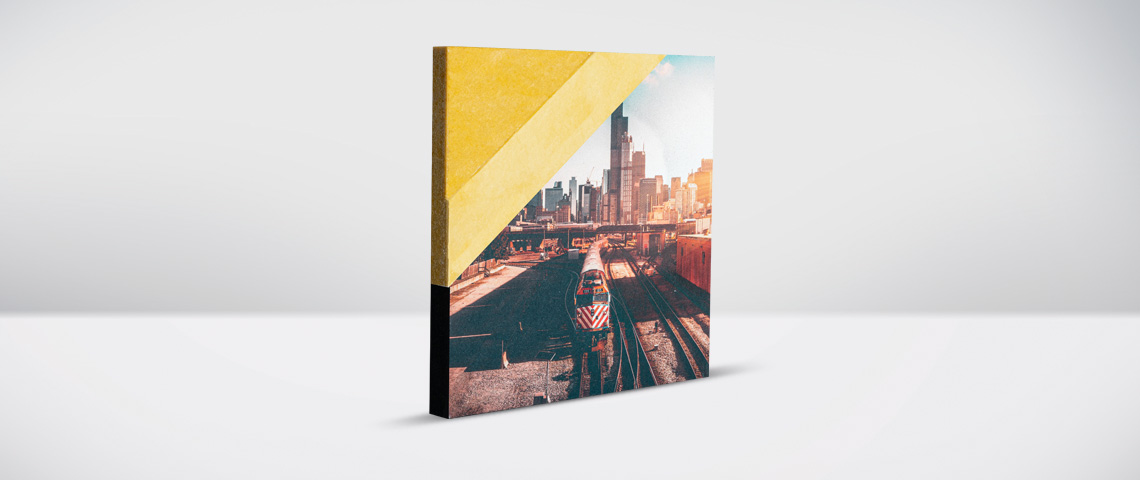

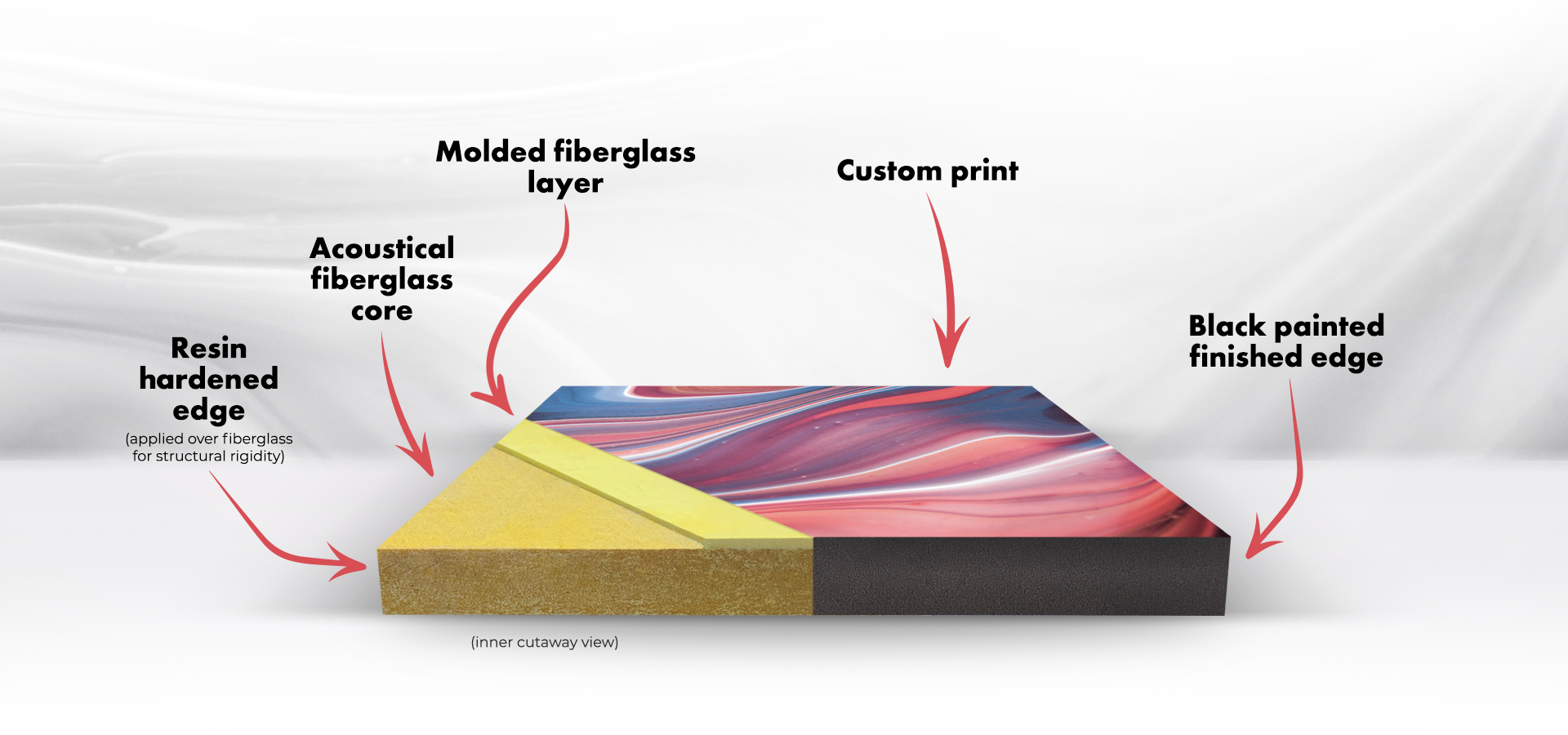

Core construction

Dimensionally-stable 6-7 PCF fiberglass board, laminated with a layer of 1⁄8" 16-20 PCF molded fiberglass, covered with a specially-formulated fiberglass scrim, and finished with a custom-printed image. Edges are protected with resin hardening.

Thickness options

Baffles • 1 1⁄4" • 1 3⁄4"
Ceiling Tiles • 1 1⁄8" • 1 5⁄8"
Clouds • 1 1⁄8" • 1 5⁄8"
Direct-Attach Ceiling Panels • 1 1⁄8" • 1 5⁄8"
Direct-Attach Wall Panels • 1 1⁄8" • 1 5⁄8"

Max sizes

Baffles • Single panels*: Min: 12" x 12" Max: 4' x 8'
Ceiling Tiles • Standard ceiling grid*: Min: 2' x 2' Max: 2' x 4'
Clouds • Single panels*: Min: 12" x 12" Max: 4' x 8'
Direct-Attach Ceiling Panels • Single panels*: Min: 12" x 12" Max: 4' x 8'
Direct-Attach Wall Panels • Single panels*: Min: 12" x 12" Max: 4' x 8'

*Larger images can be spread over multiple panels.

Finishes

File types:
Vector: AI, EPS, SVG, PDF
Raster: JPG, TIFF, PDF, PNG, PSD must be 300 DPI or higher

File size: 3MB minimum

Copyright disclaimer: Users acknowledge that all images, names, dates, and other content added to their design are correct and they own all copyrights to them or have full authorization to use them

Application details

  • Baffles
  • Ceiling Tiles
  • Clouds
  • Direct-Attach Ceiling
  • Direct-Attach Wall
Acoustic performance
NRCNRC 1 1⁄4" = 0.90

These NRC values are from direct-attach tests of the same product. NRC values for this application are equal to or greater than these values.

Product features
edgeEdge details

All edges are resin hardened. Edges are square with a black painted finish.

mountingMounting

Standard mountings:
• Acoustical spring anchor

shapesShapes:
Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImproved impact resistance:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄4"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.
Acoustic performance
NRCNRC 1 1⁄8" = 0.90

These NRC values are from direct-attach tests of the same product. NRC values for this application are equal to or greater than these values.

Product features
edgeEdge details

Edges have a black painted finish.
Available choices include:

square
Lay-In: Square
tegular
Tegular: 9⁄16", 15⁄16"

mountingMounting

Standard mountings:
• Ceiling grid system

shapesShapes:
Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImproved impact resistance:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄8"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.
Acoustic performance
NRCNRC 1 1⁄8" = 0.90

These NRC values are from direct-attach tests of the same product. NRC values for this application are equal to or greater than these values.

Product features
edgeEdge details

All edges are resin hardened. Edges are square with a black painted finish.

mountingMounting

Standard mountings:
• Acoustical anchors
• Resin spots
• Rotofast

Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImproved impact resistance:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄8"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.
Acoustic performance
NRCNRC 1 1⁄8" = 0.90
Product features
edgeEdge details

All edges are resin hardened. Edges are square with a black painted finish.

mountingMounting

Standard mountings:
• Z-Bar to Z-Bar
• Resin spots

Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImproved impact resistance:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄8"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.
Acoustic performance
NRCNRC 1 1⁄8" = 0.90
Product features
edgeEdge details

All edges are resin hardened. Edges are square with a black painted finish.

mountingMounting

Standard mountings:
• Z-Clips to Z-Bar
• Z-Bar to Z-Bar

Additional properties
Fire ratingFire rating*: 1/A (ASTM E84)

*Conwed products meet or exceed ASTM E84 standards for smoke development and flame spread on a component level.

Impact resistanceImproved impact resistance:
Scratch resistanceScratch resistance:
NAFNAF: for 1 1⁄8"
WashableWashable:
WarrantyWarranty: 3 years from date of shipment received.

Initiatives

Conwed is committed to driving sustainability wherever possible. By streamlining our processes and using recycled materials in our products, we strive to decrease our environmental impact. Our materials are certified by leading social responsibility groups and are helping us pave the way toward a more sustainable future.

For your LEED® projects, our products can help you qualify for different points depending on the product you choose. Contact us to learn more detailed information.
